M52-5150445

Headers, Receptacles, Female Sockets Overview

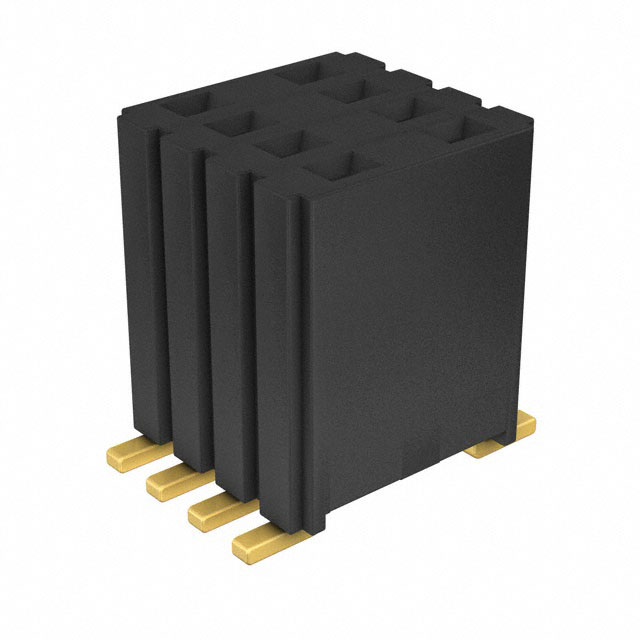

The M52-5150445 is an 8-position socket connector from the Harwin Archer M52 series, designed for board-to-board applications. It features a 0.050-inch (1.27mm) pitch with double rows spaced 0.100 inches (2.54mm) apart. The component utilizes surface-mount termination and gold-plated phosphor bronze contacts housed in black polyamide insulation. Rated for 1A current, it operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull locking mechanism ensures secure mating retention
• Gold-plated contacts provide reliable signal transmission
• Compact vertical design supports dense PCB layouts

Headers, Receptacles, Female Sockets Applications

• Telecommunications equipment interconnects
• Medical device circuit boards
• General industrial electronics assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm pin count, row configuration, and termination style. Ensure compatibility with mating header specifications regarding stacking height and contact geometry before integration into production designs.

Headers, Receptacles, Female Sockets Selection Notes

Select this model for high-density board-to-board connections requiring robust mechanical retention. The push-pull system offers superior stability compared to standard snap-fit connectors, making it suitable for environments subject to vibration or thermal cycling.

Headers, Receptacles, Female Sockets Part Context

Part of the Archer M52 family, characterized by square pins and a 1.27mm pitch. This series provides versatile options for single and double-row configurations, catering to diverse electronic packaging requirements across multiple industries.

Headers, Receptacles, Female Sockets Replacement Considerations

M52-5150445 is a discontinued item. Verify availability of active equivalents such as M52-5150446 or consult current Harwin catalogs for direct functional substitutes with identical mechanical and electrical parameters.
