M55-3100642R

Headers, Male Pins Overview

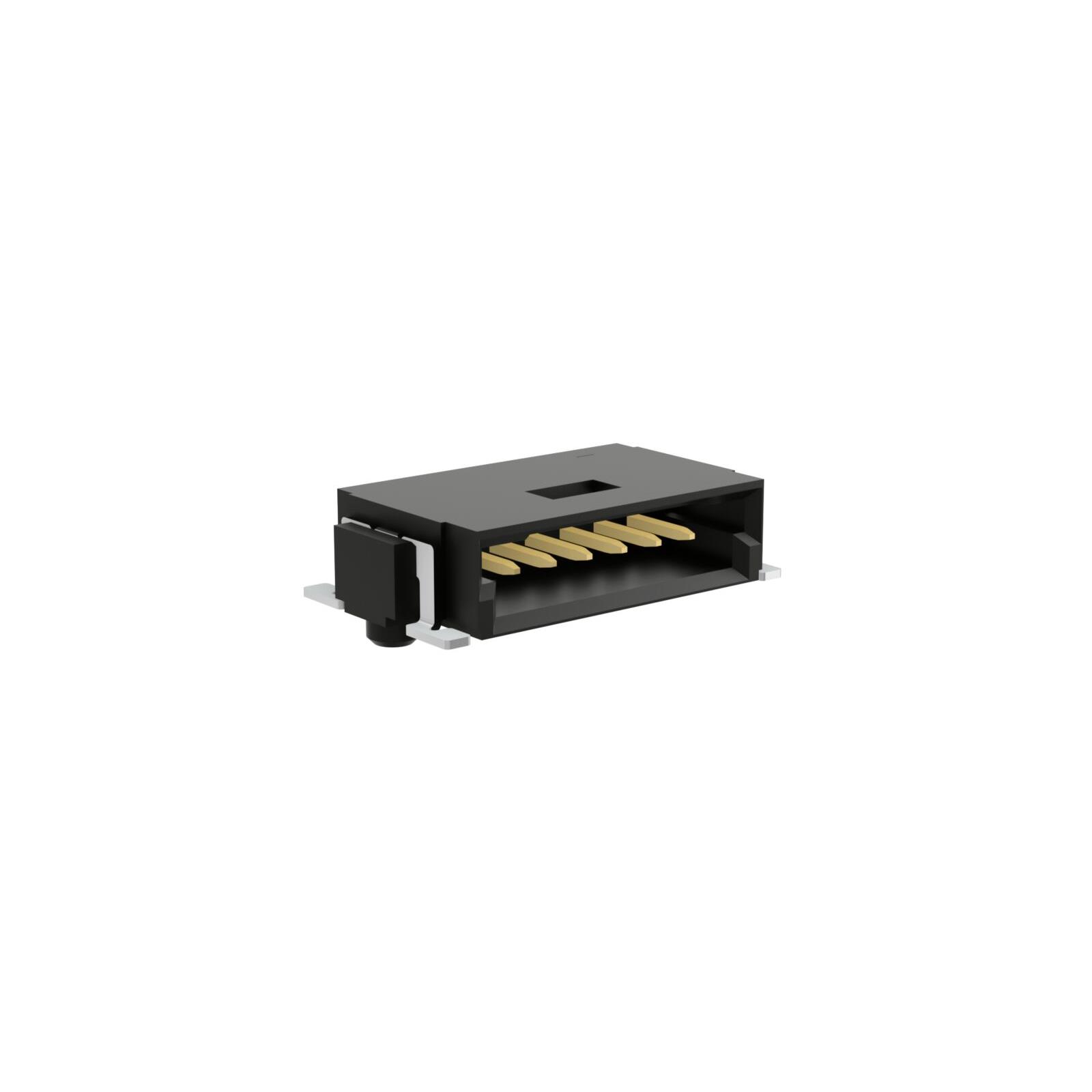

The Harwin M55-3100642R is a surface-mount header from the Archer Kontrol series, featuring 6 positions with a 1.27 mm pitch. It utilizes a single row of male contacts plated with gold on phosphor bronze, housed in liquid crystal polymer (LCP). The connector supports a current rating of 1.2 A and voltage up to 100 VAC, operating within -55°C to +125°C. It offers UL 94 V-0 flammability and 10 GOhms insulation resistance.

Headers, Male Pins Feature Summary

• Archer Kontrol design ensures precise alignment and secure mating
• Surface mount technology enables automated PCB assembly
• Gold-plated contacts provide reliable signal transmission

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Mezzanine circuit connections
• Compact electronic module integration

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates reel packaging when ordering. Confirm that the 6-position configuration matches the target PCB footprint. Ensure compatibility with standard SMT reflow profiles for LCP materials. Check RoHS compliance documentation for final assembly requirements.

Headers, Male Pins Selection Notes

Select this component for applications requiring low-profile horizontal headers. The 1.27 mm pitch suits dense layouts. Verify that the single-row architecture fits the available board space. Consider the vertical height constraints relative to adjacent components.

Headers, Male Pins Part Context

This part belongs to the Harwin M55 Archer Kontrol family, designed for high-reliability interconnects. The series emphasizes robust mechanical retention and electrical stability in compact form factors, suitable for demanding industrial and consumer electronics environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
