M55-6014042R

Headers, Receptacles, Female Sockets Overview

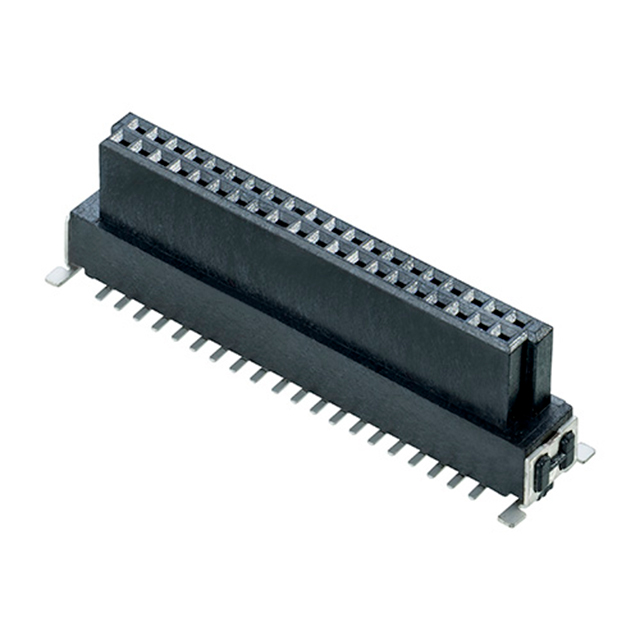

The M55-6014042R is a board-to-board and mezzanine connector from the Harwin Archer Kontrol series. It features a 1.27 mm pitch with 40 positions arranged in two rows. The component utilizes a vertical surface-mount technology (SMT) termination style. Electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The operating temperature range spans from -55°C to +125°C. Insulation resistance is specified at 10 GOhms. The housing is constructed from Liquid Crystal Polymer (LCP) with UL 94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical SMT design for direct PCB integration
• Gold-plated phosphor bronze contacts for reliable signal transmission
• High-density 1.27 mm pitch architecture

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Mezzanine circuit stacking
• Compact electronic module assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Ensure that the vertical orientation and SMT footprint requirements align precisely with the target PCB layout. Confirm that the 1.27 mm pitch and 40-position configuration match the system design specifications to avoid mechanical incompatibility during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, low-profile connection is required between stacked boards. The 1.27 mm pitch offers a balance between density and manufacturability. Consider the 1.2 A current rating and 100 VAC voltage limit to ensure they meet the electrical demands of the application. The LCP housing provides thermal stability suitable for reflow soldering processes.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer Kontrol M55 series, designed for high-reliability interconnects. The series emphasizes compact form factors and robust mechanical performance. The M55-6014042R specifically addresses the need for vertical female receptacles in space-constrained environments requiring stable electrical connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible counterparts within the same series include the M55-7014042R male header and the M55-6104042R right-angle variant. Verify mating compatibility and mechanical stack height requirements when substituting with other series components.
