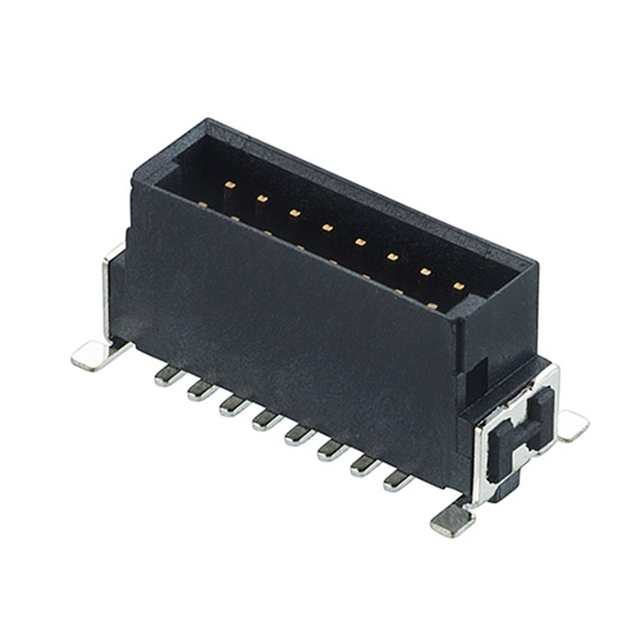

M55-7001642R

$1.41

Description：CONN HEADER SMD 16POS 1.27MM
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:10cce016c04c Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M55-7001642R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 16POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M55-7001642R

Description：CONN HEADER SMD 16POS 1.27MM
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.266" (6.76mm)
Contact Shape：Rectangular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide, Pick and Place, Solder Retention
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1.2A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M55-7001642R

M55-7001642R

Headers, Male Pins Overview

The Harwin M55-7001642R is a surface-mount board-to-board header from the Kontrol M55 series. It features 16 positions in a dual-row configuration with a 1.27mm pitch. The connector utilizes phosphor bronze contacts with gold plating and an LCP housing rated UL94 V-0. Rated for 1.2A at 100VAC, it operates between -55°C and +125°C. Key specifications include a mating contact length of 4.00mm, an insulation height of 9.86mm, and a stacking height of 8.25mm.

Headers, Male Pins Feature Summary

Archer Kontrol design provides robust mechanical retention via mounting pegs and solder keepers.
Four-wall shielding offers electromagnetic interference protection.
Vertical surface mount termination ensures precise PCB alignment.

Headers, Male Pins Applications

Automotive electronics
Industrial control systems
General purpose interconnects

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status using official manufacturer documentation. Ensure storage conditions maintain integrity of the gold-plated contacts and liquid crystal polymer housing prior to assembly.

Headers, Male Pins Selection Notes

Select this model for high-density vertical interconnections requiring reliable surface-mount performance. The 1.27mm pitch suits compact layouts. Verify that the 8.25mm stacking height accommodates the target enclosure constraints and mating connector requirements.

Headers, Male Pins Part Context

This part belongs to the Harwin Kontrol M55 family, designed for demanding environments. It complements female counterparts within the same series to form complete board-to-board interfaces. The product line emphasizes durability and precision engineering for critical electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M55 series headers with matching 16-position, 1.27mm pitch, and SMT specifications. Cross-referencing datasheets is essential to confirm identical stacking heights and electrical ratings before substitution.
