M55-7013242R

Headers, Male Pins Overview

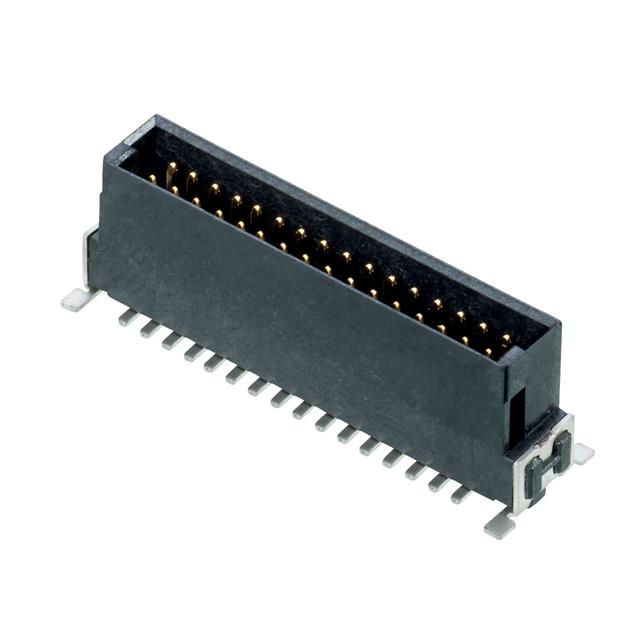

The Harwin M55-7013242R is a board-to-board and mezzanine connector from the Archer Kontrol series. It features a 1.27 mm pitch with 32 positions arranged in two rows. The component utilizes a male contact configuration designed for vertical surface mount termination. Key electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The housing is constructed from black Liquid Crystal Polymer (LCP) with UL 94 V-0 flammability classification. Contact surfaces are gold-plated phosphor bronze, ensuring reliable signal transmission.

Headers, Male Pins Feature Summary

• Vertical surface mount architecture optimized for high-density PCB stacking applications
• Archer Kontrol locking mechanism ensures secure mating retention between boards
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• LCP insulation material supports operation across extended industrial temperature ranges

Headers, Male Pins Applications

• High-density interconnects within compact electronic modules
• Stacked circuit board assemblies requiring precise alignment
• Industrial control systems demanding robust mechanical retention
• Telecommunications equipment utilizing space-constrained layouts

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm pin count and orientation. Ensure compatibility with mating female connectors within the same Archer Kontrol family. Confirm RoHS compliance status through the manufacturer's latest declaration. Validate that the selected packaging format matches automated assembly requirements.

Headers, Male Pins Selection Notes

Select this component when vertical stacking height constraints align with its specific profile. Consider the 1.27 mm pitch requirement for trace routing density. Evaluate the 1.2 A current rating against total system load demands. Verify that the surface mount footprint matches the design layout guidelines provided in the datasheet.

Headers, Male Pins Part Context

This part belongs to the Harwin M55 series, specifically the Archer Kontrol line known for secure locking mechanisms. It serves as a male header variant within the broader rectangular connector portfolio. The series supports various row configurations and pitch options for diverse board-to-board connectivity needs.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-referencing requires identical pitch, position count, and locking mechanism specifications. Consult Harwin engineering for potential alternative series members if exact matching is unavailable.
