M55-7108042R

Headers, Male Pins Overview

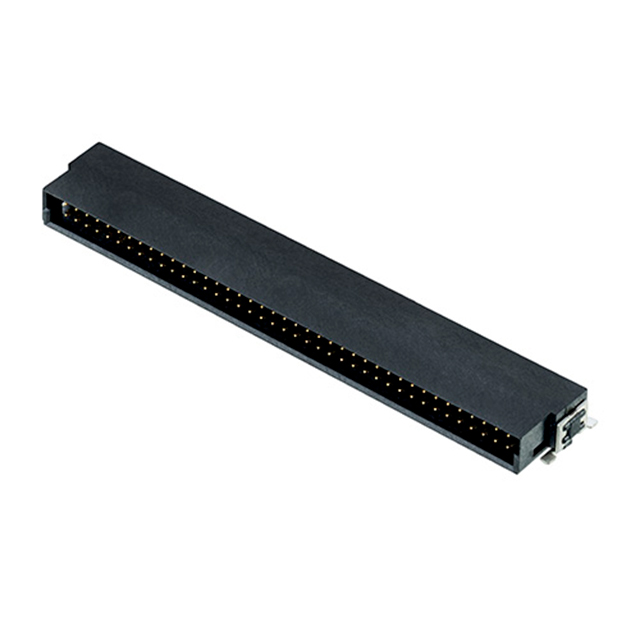

The M55-7108042R is a board-to-board connector from the Harwin Archer Kontrol series, designed for surface mount technology. It features an 80-position male header with a 1.27 mm pitch and two rows of contacts. The component utilizes right-angle termination for horizontal PCB mounting. Electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The operating temperature range spans from -55°C to +125°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact horizontal integration
• Gold-plated phosphor bronze contacts for reliable signal transmission
• Liquid crystal polymer housing with UL 94 V-0 flammability rating

Headers, Male Pins Applications

• Automotive electronic assemblies
• Industrial control systems
• Compact electronic device interconnects

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count and orientation. Ensure compatibility with mating female connectors within the same series. Check for RoHS compliance status in the latest datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring high-density connections with limited vertical space. The right-angle configuration facilitates efficient board stacking. Confirm that the 1.27 mm pitch aligns with the target PCB layout requirements.

Headers, Male Pins Part Context

This component belongs to the Archer Kontrol family of board-to-board connectors. The series is characterized by its robust construction and suitability for demanding environments. The M55-7108042R specifically represents the 80-position variant within this lineup.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 80-position 1.27 mm pitch headers from the same manufacturer series, such as the M55-7108042R variants with different packaging options.
