Headers, Receptacles, Female Sockets Overview

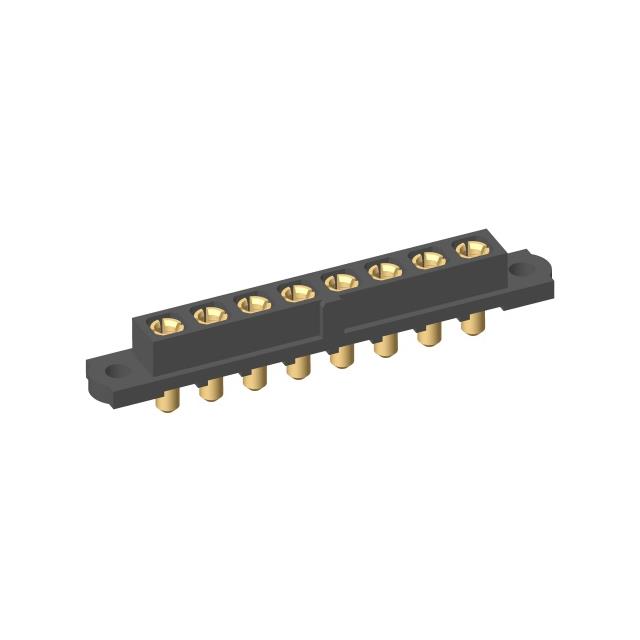

The M80-400000000-08-PF1-00-000 is an 8-position female receptacle connector from the Harwin Datamate J-Tek series. It features a 4.00mm pitch and utilizes through-hole vertical mounting for board integration. The contacts are gold-plated to ensure reliable signal transmission in high-reliability applications. This component is designed for secure interconnection within mixed-signal environments, offering robust mechanical stability and electrical performance suitable for demanding industrial and commercial electronic systems.

Headers, Receptacles, Female Sockets Feature Summary

• Datamate J-Tek series design for high reliability
• Gold-plated contacts for corrosion resistance
• Through-hole vertical mounting configuration
• Secure locking mechanism for stable connection

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Medical instrumentation
• Telecommunications equipment
• Automotive electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify part number accuracy against official Harwin documentation before ordering. Confirm RoHS compliance status and material specifications with the manufacturer. Check for any recent product change notices or obsolescence alerts. Ensure compatibility with mating connectors in the Datamate ecosystem. Validate environmental ratings for intended operating conditions.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a vertical through-hole female receptacle with 4.00mm pitch is required. Consider the Datamate J-Tek series for applications needing high durability and signal integrity. Evaluate space constraints for vertical mounting orientation. Assess contact plating requirements for environmental exposure. Match with appropriate male counterparts from the same series.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Datamate family, known for compact, high-density interconnect solutions. The M80 prefix indicates the Datamate L-Tek or J-Tek line, depending on specific variant details. It represents a standard industry solution for reliable board-to-board or cable-to-board connections in constrained spaces.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes may include other Harwin Datamate J-Tek female receptacles with identical 8-position count and 4.00mm pitch. Verify pinout compatibility and mechanical dimensions before substitution. Cross-reference with official Harwin replacement guides for discontinued variants.
