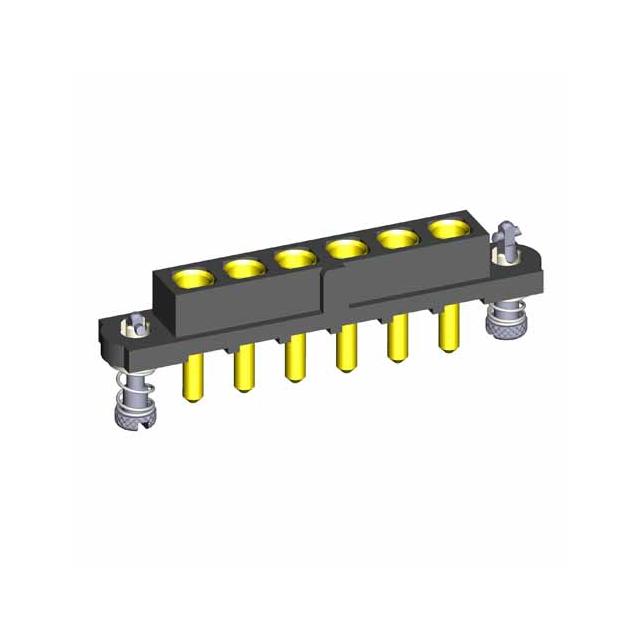

M80-4000000FD-06-322-00-000

M80-4000000FD-06-322-00-000 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN DATAMATE FEM 6POS. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M80-4000000FD-06-322-00-000

• Description：CONN DATAMATE FEM 6POS
• Series：Datamate Mix-Tek
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket, Power
• Style：Board to Board or Cable
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.157" (4.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Screw Lock
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.205" (5.20mm)
• Contact Length - Post：0.197" (5.00mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：-
• Mated Stacking Heights：7.3mm
• Ingress Protection：-
• Features：Jackscrews, Polarizing Key
• Current Rating (Amps)：20A
• Voltage Rating：800V

Headers, Receptacles, Female Sockets datasheet and documents for M80-4000000FD-06-322-00-000
