M80-4002642

Headers, Receptacles, Female Sockets Overview

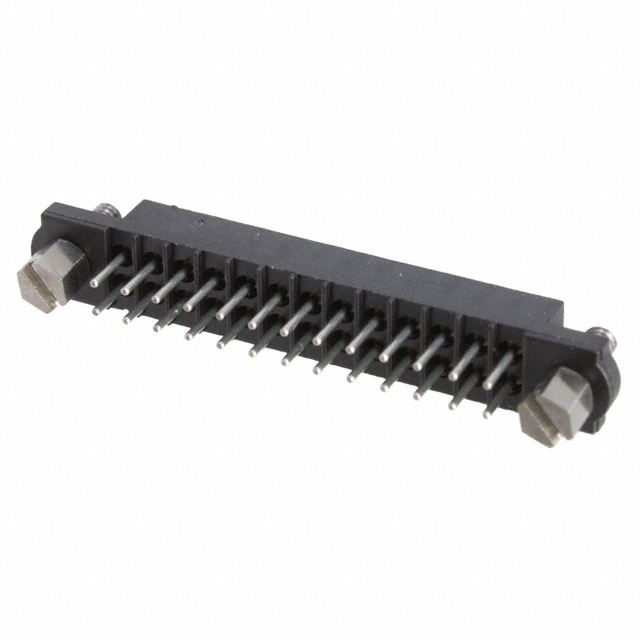

The M80-4002642 is a 26-position female receptacle connector from the Harwin Datamate J-Tek series. It features a 2.00 mm (0.079 inch) pitch and is designed for vertical through-hole mounting. The connector supports board-to-board and cable applications with a voltage rating of 120V. Contacts are gold-plated, and the housing utilizes PPS material. Operating temperatures range from -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Datamate J-Tek series design ensures secure mating in high-vibration environments
• Vertical through-hole termination facilitates reliable PCB integration
• Gold-plated contacts provide durable electrical conductivity

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnects requiring vibration resistance
• Cable connections in safety-critical systems
• Industrial equipment subject to high mechanical loads

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number M80-4002642 against official Harwin documentation to confirm it matches the required 26-position female receptacle configuration. Ensure compatibility with the intended 2.00mm pitch system and verify that the vertical through-hole mounting style aligns with your PCB layout requirements before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a robust, vertically oriented female socket is needed for 26-position connections. The Datamate J-Tek series is appropriate for applications demanding high reliability under vibration. Confirm that the 120V rating and -55°C to 125°C temperature range meet the operational environment specifications.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Datamate J-Tek family, known for its durability in harsh conditions. The M80-4002642 specifically serves as a female receptacle counterpart to male headers within the same series, enabling secure interconnections in compact electronic assemblies where space and mechanical stability are critical.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other Harwin Datamate J-Tek female receptacles with matching 26 positions and 2.00mm pitch. Verify pin count, orientation, and termination type to ensure functional equivalence without redesigning the host PCB or cable assembly.
