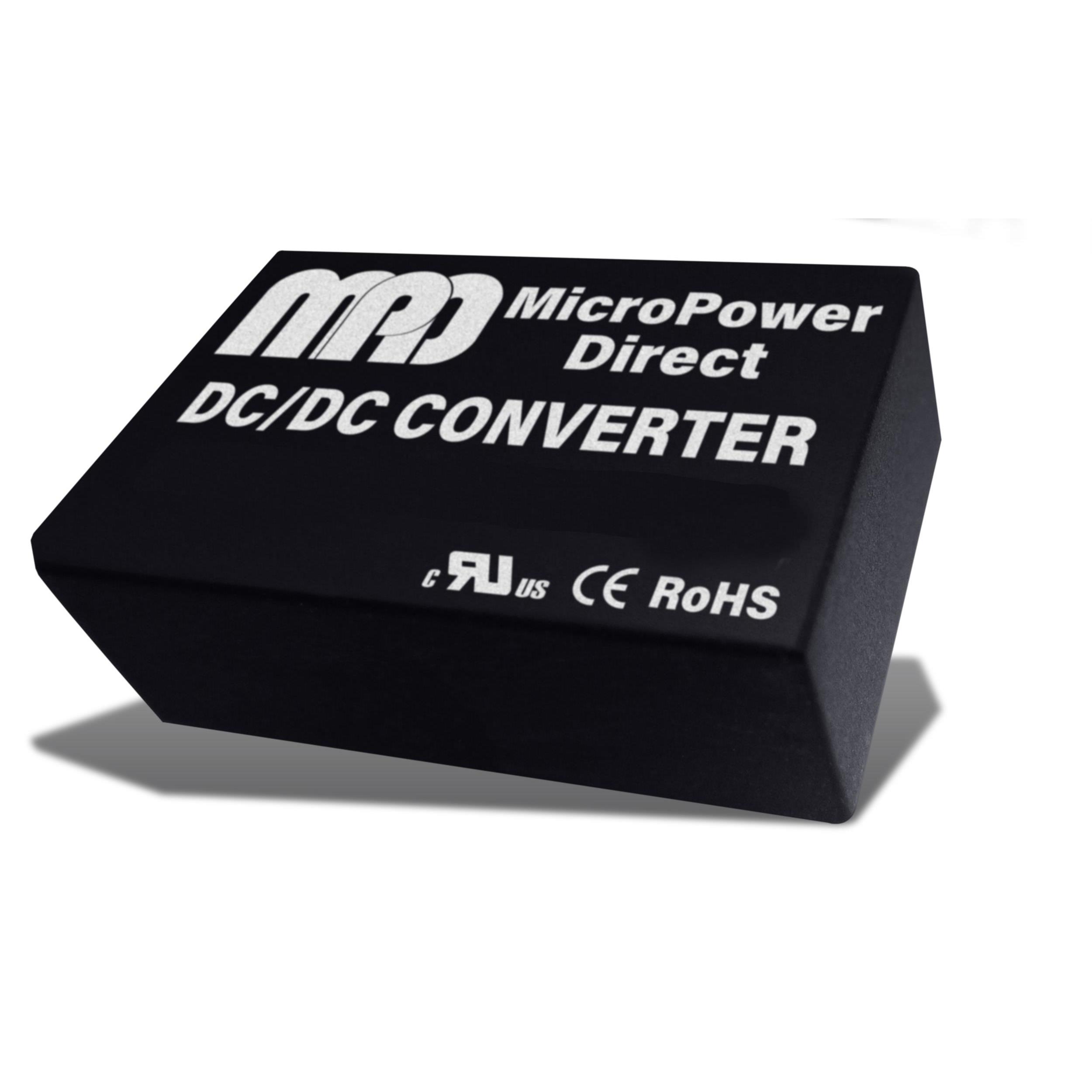

MA305D-12R

MA305D-12R is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,3W,5VIN,12VOUT,1.5 KVISO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MA305D-12R

• Description：DC/DC,3W,5VIN,12VOUT,1.5 KVISO
• Series：MA300R (3W)
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：125mA, 125mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 12 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MA305D-12R
