MAX17291ANT+T

$3.11

Description：IC REG BOOST ADJ 1A 6WLP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:68edf6d1402c Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MAX17291ANT+T is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc./Maxim Integrated. Its product description is IC REG BOOST ADJ 1A 6WLP. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MAX17291ANT+T

Description：IC REG BOOST ADJ 1A 6WLP
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Up
Output Configuration：Positive
Topology：Boost
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：1.8V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：5.5V
Voltage - Output (Max)：20V
Current - Output：1A
Frequency - Switching：1MHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

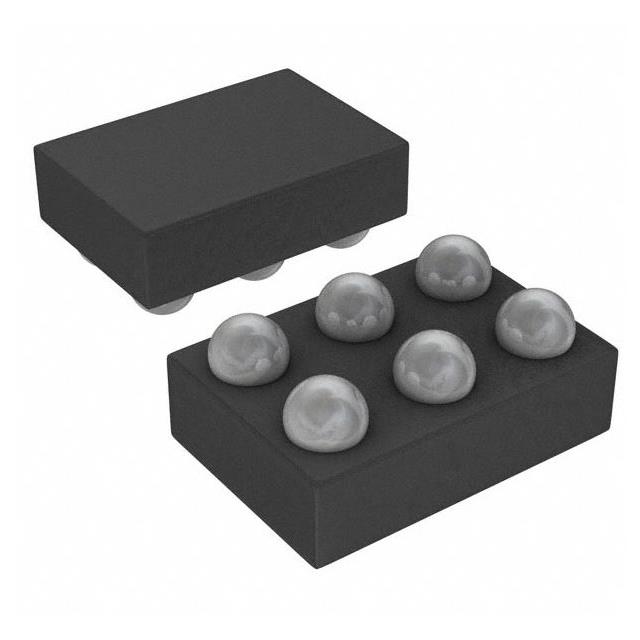

Package / Case：6-XFBGA, WLBGA
Supplier Device Package：6-WLP (1.27x0.87)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MAX17291ANT+T

MAX17291ANT+T

Voltage Regulators - DC DC Switching Regulators Overview

The MAX17291ANT+T is a high-voltage micro-power boost converter from the nanoPower series, manufactured by Analog Devices Inc./Maxim Integrated. It features a wide input voltage range and delivers up to 1A output current with a maximum output voltage of 5.5V. The device operates at a switching frequency of 1MHz and maintains low quiescent current across load conditions. It utilizes a 6-WLP (1.08x0.73mm) surface-mount package and supports an operating temperature range of -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated short-circuit protection for enhanced reliability
True shutdown capability minimizes power consumption
Optimized for highest efficiency across full load ranges

Voltage Regulators - DC DC Switching Regulators Applications

Battery-powered portable electronics
Industrial sensor nodes
Wireless communication modules

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific tape-and-reel packaging requirements prior to order placement. Ensure supply chain documentation matches the exact suffix designation to avoid functional discrepancies in final assembly.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when high-voltage step-up conversion is required alongside ultra-low static current performance. The integrated short-circuit protection and true shutdown feature make it suitable for applications demanding strict power management and robust fault handling capabilities within compact form factors.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MAX17291 family of high-voltage micro-power boost converters. It is designed to replace older generation regulators where size constraints and battery life are critical. The nanoPower series emphasizes minimal footprint and extended operational longevity in energy-constrained environments.
