MAYA-W260-00B

RF Transceiver Modules And Modems Overview

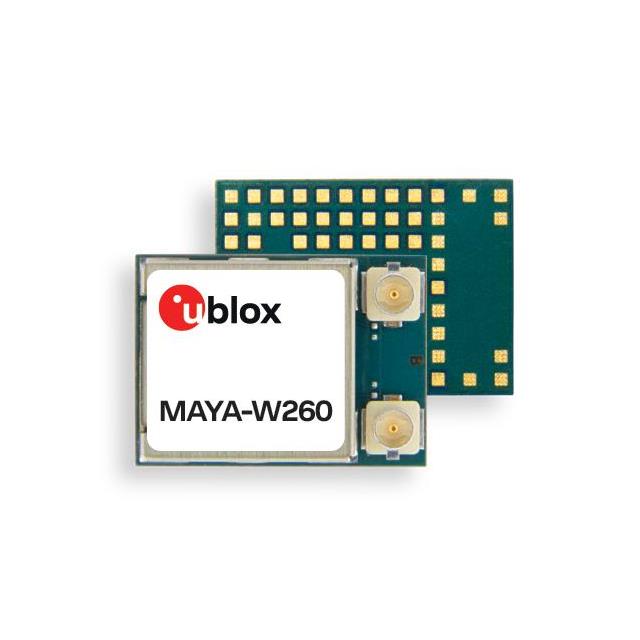

The u-blox MAYA-W260-00B is a multiprotocol module supporting Wi-Fi 6 (802.11ax), Bluetooth LE 5.2, and IEEE 802.15.4. It operates on 2.4 GHz and 5 GHz frequencies with an output power of 18 dBm. The module features SPI, UART, USB, SDIO, I2S, PCM, and GPIO interfaces. Operating voltage ranges from 3.13 VDC to 3.46 VDC. Dimensions are 14.3 mm x 10.4 mm x 1.9 mm. It includes two U.FL connectors and supports WPA3 security.

RF Transceiver Modules And Modems Feature Summary

• Integrates Wi-Fi 6, Bluetooth LE 5.2, and 802.15.4 protocols in a single chip.
• Supports dual-band operation across 2.4 GHz and 5 GHz frequencies.
• Includes dedicated U.FL antenna connectors for flexible RF design.
• Provides comprehensive host interfaces including SPI, UART, and USB.

RF Transceiver Modules And Modems Applications

• Industrial automation systems
• Smart home devices
• Energy management solutions
• Healthcare monitoring equipment

RF Transceiver Modules And Modems Procurement Notes

Verify the specific ordering suffix to confirm the antenna interface configuration, as the MAYA-W2 series offers pin, U.FL, or PCB antenna options. Confirm that the selected variant matches the required mechanical footprint and RF connector type for the target application. Ensure compliance with RoHS standards and check moisture sensitivity levels for proper storage and handling procedures during assembly.

RF Transceiver Modules And Modems Selection Notes

Select this module when a compact solution is required to support multiple wireless standards simultaneously. It is suitable for designs needing high throughput via Wi-Fi 6 alongside low-power connectivity options. Consider the available software drivers for Linux, Android, and FreeRTOS to simplify integration. Evaluate the need for dual U.FL connectors versus other antenna types based on enclosure constraints.

RF Transceiver Modules And Modems Part Context

This component belongs to the u-blox MAYA-W2 series, which introduces Wi-Fi 6 technology to industrial and consumer markets. The series provides seamless compatibility with previous generations like the MAYA-W1, allowing for easy upgrades. It utilizes NXP IW611/IW612 chipsets to deliver efficient communication for Matter-enabled ecosystems and general IoT applications.

RF Transceiver Modules And Modems Replacement Considerations

The MAYA-W261-00B serves as a direct alternative with identical functionality but uses antenna pins instead of U.FL connectors. Designers must verify mechanical compatibility if substituting between these variants due to the different antenna interface implementations.

RF Transceiver Modules And Modems FAQ

What wireless protocols does the MAYA-W260-00B support?

It supports Wi-Fi 6 (802.11ax), Bluetooth LE 5.2, and IEEE 802.15.4 (Thread/Zigbee).

How many antenna connectors are included?

The MAYA-W260-00B specifically includes two U.FL connectors for antenna attachment.
