MAYA-W463-00B

RF Transceiver Modules And Modems Overview

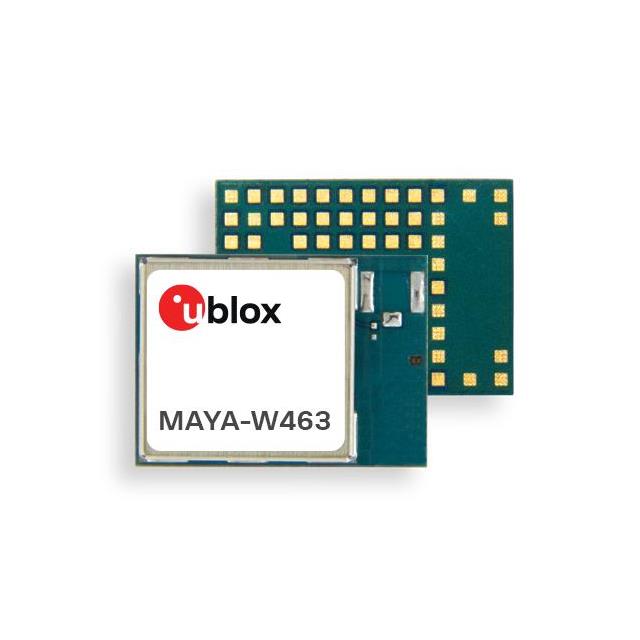

The u-blox MAYA-W463-00B is a host-based multiprotocol module integrating dual-band Wi-Fi 6 and Bluetooth LE. It operates on 2.4 GHz and 5 GHz frequencies with output powers of 15 dBm and 18 dBm respectively. The module supports SPI, UART, and USB interfaces and functions within a voltage range of 3.13 VDC to 3.46 VDC. It features receiver sensitivities of -94 dBm, -95 dBm, -100.5 dBm, and -103 dBm. The compact SMD/SMT package measures 14.3 mm x 10.4 mm x 1.9 mm. It includes WPA3 security and supports one antenna pin.

RF Transceiver Modules And Modems Feature Summary

• Integrates dual-band Wi-Fi 6 and Bluetooth LE in a single compact form factor
• Supports MU-MIMO technology for enhanced network capacity
• Includes WPA3 security protocols for secure data transmission
• Offers flexible interface options including SPI, UART, and USB

RF Transceiver Modules And Modems Applications

• IoT devices requiring dual-band wireless connectivity
• Smart home appliances and sensors
• Industrial automation equipment
• Wearable health monitoring devices

RF Transceiver Modules And Modems Procurement Notes

Verify the specific ordering suffix and hardware revision against the official u-blox datasheet before procurement. Confirm that the host system supports the required interface protocols (SPI, UART, or USB) and provides adequate power supply within the specified voltage range. Ensure compliance with regional radio frequency regulations for both 2.4 GHz and 5 GHz bands during integration planning.

RF Transceiver Modules And Modems Selection Notes

Select this module when a single component solution for both Wi-Fi and Bluetooth is required to save PCB space. It is suitable for applications needing high-speed Wi-Fi 6 performance alongside low-power Bluetooth connections. Consider the single antenna pin design for simplified RF layout compared to multi-antenna variants. Verify thermal management requirements as the module operates up to +85 C.

RF Transceiver Modules And Modems Part Context

The MAYA-W463-00B belongs to the u-blox MAYA-W4 series of host-based multiprotocol modules. This series focuses on combining multiple wireless standards into compact packages for IoT applications. Unlike some siblings in the series, this specific model excludes 802.15.4/Thread support, focusing purely on Wi-Fi 6 and Bluetooth LE integration for streamlined development.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes within the same family include MAYA-W466-00B, which offers similar specifications. For broader compatibility, evaluate other MAYA-W4 series modules such as MAYA-W473-00B if additional protocol support like Thread is needed. Always cross-reference pinouts and firmware requirements when switching between variants.
