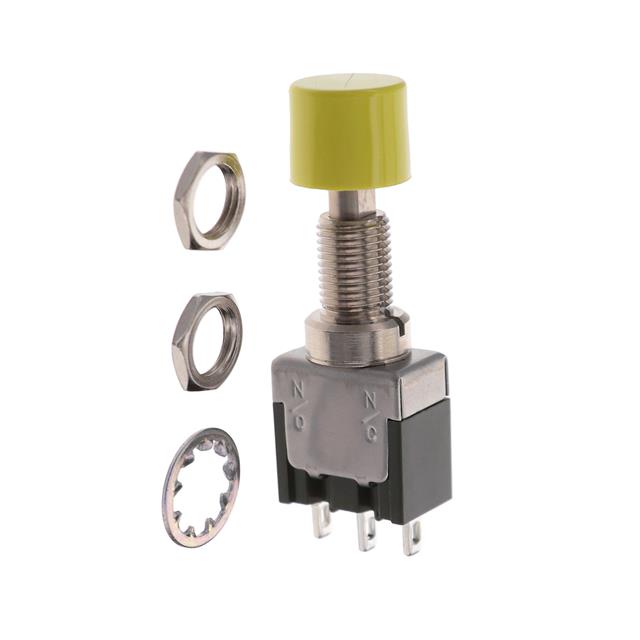

MB2011SS1W01-CE

MB2011SS1W01-CE is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH PUSHBUTTON SPDT 6A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for MB2011SS1W01-CE

• Description：SWITCH PUSHBUTTON SPDT 6A 125V
• Series：MB2000
• Mfr：NKK Switches
• Package：Bulk
• Mounting Type：Panel Mount, Rear
• Type：Standard
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：6A (AC), 3A (DC)
• Actuator Type：Round, Button
• Actuator Marking：No Marking
• Color - Actuator/Cap：Yellow
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Ingress Protection：-
• Features：Epoxy Sealed Terminals
• Panel Cutout Dimensions：Circular - 6.50mm Dia
• Operating Temperature：-30°C ~ 85°C
• Voltage Rating - DC：30 V
• Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for MB2011SS1W01-CE
