MBD54DWT1

Diode Arrays Overview

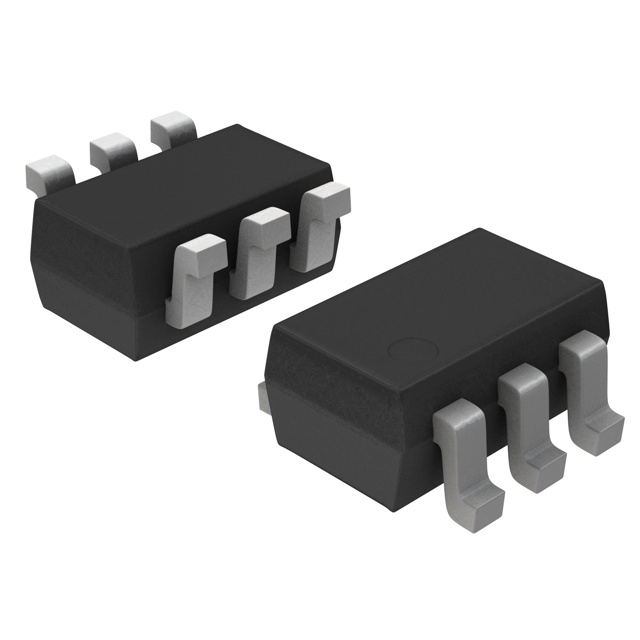

The MBD54DWT1G is a dual Schottky barrier diode designed for high-speed switching, circuit protection, and voltage clamping applications. It features an extremely low forward voltage of 0.35 V at a forward current of 10 mA DC, which significantly reduces conduction losses in power-sensitive designs. The device is housed in a miniature surface-mount package, making it suitable for space-constrained environments such as handheld and portable electronics. Key electrical characteristics include a maximum repetitive peak reverse voltage of 30 V and a maximum average forward rectified current of 200 mA per element.

Diode Arrays Feature Summary

• Extremely fast switching speed for high-frequency applications
• Low forward voltage to minimize conduction loss
• Miniature surface mount package optimized for limited space

Diode Arrays Applications

• High-speed switching circuits
• Circuit protection systems
• Voltage clamping applications
• Handheld and portable electronic devices

Diode Arrays Procurement Notes

Verify the specific suffix (e.g., T1G vs T1) against the official datasheet revision history, as suffixes often denote packaging or compliance variations that do not alter function but affect physical handling. Confirm the manufacturer source directly from onsemi documentation to ensure authenticity. Cross-reference the part number with the latest marking specifications to avoid confusion with similar variants like MBD54DWT1G.

Diode Arrays Selection Notes

Select this component when low forward voltage drop is critical for efficiency in low-current signal paths. The dual common cathode configuration allows for compact design in differential signaling or logic level shifting. Ensure the operating temperature range aligns with the application environment, as thermal management is less critical due to the small package size but still relevant for reliability.

Diode Arrays Part Context

This component belongs to the family of dual Schottky barrier diodes from onsemi, engineered for performance in tight spaces. It shares functional similarities with other BAT54 series devices but offers specific electrical characteristics tailored for modern portable electronics. The technology leverages Schottky junction properties to achieve superior switching speeds compared to standard silicon PN junction diodes.

Diode Arrays Replacement Considerations

Public confirmed substitute part numbers include MBD54DWT1G. Other compatible alternatives within the same family may include MBD110DWT1G, though forward voltage and current ratings differ. Verify pinout compatibility and package dimensions before substitution.
