MBRLP2050-TP

Single Diodes Overview

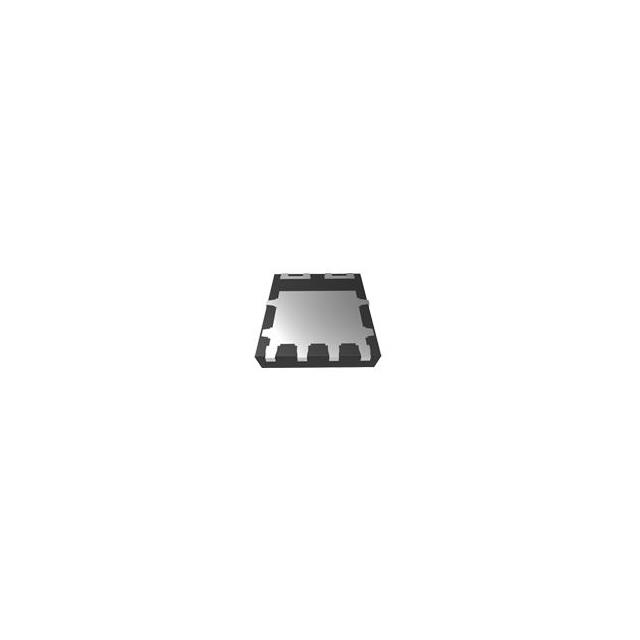

The MBRLP2050-TP is a Schottky barrier rectifier manufactured by Micro Commercial Components (MCC). It features a maximum recurrent peak reverse voltage of 50V and an average forward current rating of 20A. The device utilizes a DFN5060-8L package with an exposed heat sink pad for thermal management. Electrical characteristics include a typical forward voltage of 0.46V at 20A, with a maximum of 0.51V. Peak reverse leakage current is specified at 0.3mA maximum at 125°C. The component supports an operating junction temperature range from -55°C to +150°C and offers a peak forward surge current capability of 280A.

Single Diodes Feature Summary

• Low forward voltage drop design for high efficiency power conversion
• High current capability with robust surge handling capacity
• Halogen-free 'Green' device compliant with RoHS standards
• Epoxy material meets UL 94 V-0 flammability rating

Single Diodes Applications

• Low voltage, high frequency inverters
• Free-wheeling diode applications
• Polarity protection circuits

Single Diodes Procurement Notes

Verify the part number suffix '-TP' indicates tape and reel packaging containing 3000 pieces per reel. Confirm compliance with RoHS directives and Halogen-free requirements during sourcing. Purchase only from MCC or authorized distributors to ensure genuine parts with full traceability and quality assurance. Counterfeit prevention measures are strictly enforced by the manufacturer.

Single Diodes Selection Notes

Select this component for applications requiring low forward voltage drop and high current handling in compact surface-mount designs. The DFN5060-8L package provides efficient thermal dissipation through the exposed pad. Ensure the circuit operates within the specified 50V reverse voltage limit and 20A average forward current constraints. Consider the 150°C maximum junction temperature for high-temperature environments.

Single Diodes Part Context

This component belongs to the MBRLP series of Schottky barrier rectifiers from Micro Commercial Components. It is designed as a low VF alternative for standard rectifiers, offering improved efficiency in power supply applications. The series includes various voltage ratings while maintaining the 20A current capability and compact DFN footprint for modern PCB layouts.

Single Diodes Replacement Considerations

Direct substitutes must match the 50V rating, 20A current capacity, and DFN5060-8L package. Verify that any replacement maintains equivalent forward voltage characteristics and thermal performance. Check for identical pinout configuration and polarity markings to ensure compatibility with existing board designs.
