MCM1012B121F06BPDG

$0.15

Description：CMC 300MA 2LN 120 OHM SMD
Series：MCM1012B
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:204f84821c48 Category: Common Mode Chokes Brand: INPAQ Technology Co., Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

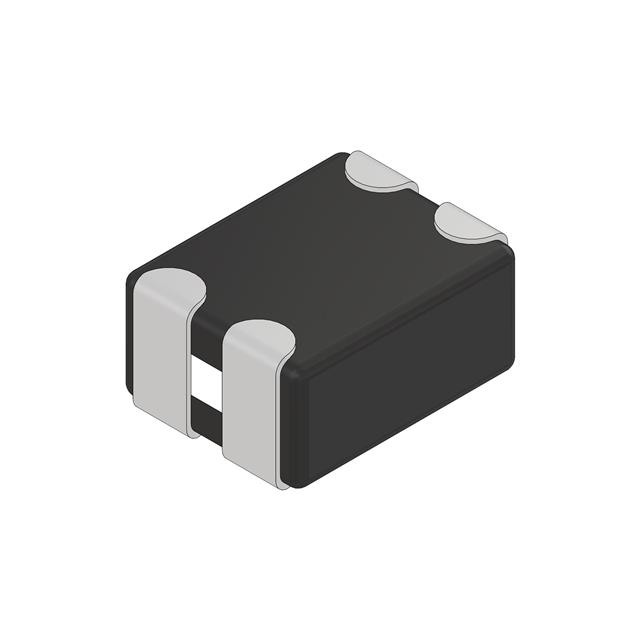

MCM1012B121F06BPDG is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is CMC 300MA 2LN 120 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for MCM1012B121F06BPDG

Description：CMC 300MA 2LN 120 OHM SMD
Series：MCM1012B
Mfr：INPAQ Technology Co., Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：600mOhm
Voltage Rating - DC：10V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)：0.028" (0.71mm)
Package / Case：0504 (1210 Metric), 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：120 Ohms @ 100 MHz

Common Mode Chokes datasheet and documents for MCM1012B121F06BPDG

MCM1012B121F06BPDG

Common Mode Chokes Overview

The MCM1012B121F06BPDG is a multilayer common mode choke manufactured by INPAQ Technology Co., Ltd. Designed for high-speed differential signal transmission lines, this component utilizes composite co-fired materials to address electromagnetic interference (EMI) issues effectively. Key electrical specifications include an impedance of 120 Ohms at 100 MHz, a maximum DC resistance of 600mOhm, and a current rating of 300mA. The device operates with a DC voltage rating of 10V.

Common Mode Chokes Feature Summary

Utilizes composite co-fired material technology to solve EMI problems in high-speed differential signal transmission lines.

Common Mode Chokes Applications

USB signal transmission lines
LVDS signal transmission lines

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix BPDG against the manufacturer's latest datasheet to confirm packaging configuration and tape-and-reel specifications. Ensure compatibility with surface-mount assembly processes by checking recommended soldering profiles. Cross-reference the part number with official distributor catalogs to confirm availability and authenticity before placing orders.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring EMI suppression for high-speed differential signals such as USB or LVDS interfaces. Consider the 120 Ohm impedance at 100 MHz and 300mA current rating to ensure adequate performance without saturation. Verify that the compact form factor meets board space constraints while providing necessary noise attenuation characteristics.

Common Mode Chokes Part Context

This component belongs to INPAQ Technology's Multilayer Common Mode Choke series, which focuses on circuit protection and EMI mitigation. The company specializes in components for computing, communication, consumer electronics, and automotive applications. This specific model addresses noise reduction needs in digital signal integrity environments.

Common Mode Chokes Replacement Considerations

Consult official substitution lists from INPAQ Technology for direct equivalents. Verify impedance curves and physical dimensions match the original design requirements before adopting alternative part numbers.
