MCZ1210AH201CPTD25

Common Mode Chokes Overview

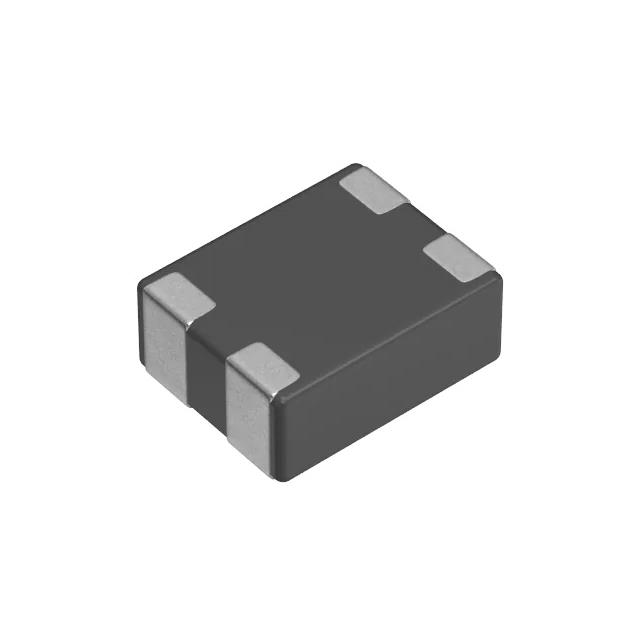

The MCZ1210AH201CPTD25 is a multilayer common mode filter manufactured by TDK Corporation, designed for surface-mount PCB assembly. It operates within an impedance range of 200 Ohms with a tolerance of 25 percent and supports a maximum DC current of 100 mA. The component features a maximum DC resistance of 4 Ohms and functions reliably across a temperature span from -40 C to +105 C. Housed in a compact 0404 (1210 metric) package measuring 1.25 mm by 1 mm by 0.5 mm, it meets AEC-Q200 automotive standards and is tested at 100 MHz.

Common Mode Chokes Feature Summary

• Provides effective suppression of common mode noise in high-speed signal lines through integrated shielding.
• Complies with AEC-Q200 qualification standards for automotive electronic reliability requirements.
• Utilizes a compact multilayer ceramic structure suitable for dense printed circuit board layouts.

Common Mode Chokes Applications

• Advanced Driver Assistance Systems (ADAS)
• Automotive camera interfaces
• In-vehicle display connections
• Instrument cluster circuits

Common Mode Chokes Procurement Notes

Verify the complete part number including suffixes to ensure correct packaging and specifications. Confirm RoHS compliance status via official documentation before integration. Cross-reference datasheet parameters against design requirements to validate thermal and electrical performance limits for the target application environment.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring 200 Ohm impedance filtering for single-channel applications. Ensure the operating environment remains within the specified -40 C to +105 C temperature range. Verify that the 100 mA current rating aligns with the signal line requirements to prevent saturation or excessive heating during normal operation.

Common Mode Chokes Part Context

This component belongs to the MCZ-AH series of automotive-grade common mode filters. It represents a specialized solution for suppressing electromagnetic interference in vehicle electronics. The series emphasizes compact form factors and robust performance under varying thermal conditions typical of modern automotive environments.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series. Verify pin compatibility and impedance characteristics before replacing existing components in established designs.
