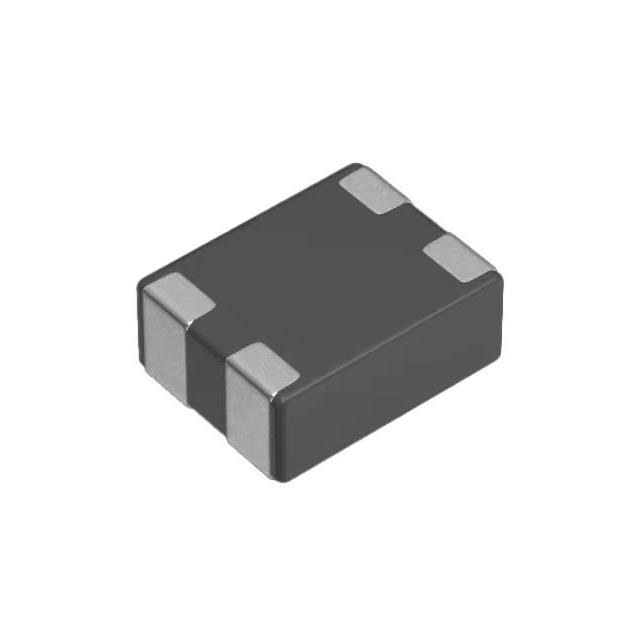

MCZ1210DH800CPTA0G

$0.55

Description：CMC 100MA 2LN 80 OHM SMD
Series：MCZ-DH
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d4e93fec5e3d Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCZ1210DH800CPTA0G is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is CMC 100MA 2LN 80 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for MCZ1210DH800CPTA0G

Description：CMC 100MA 2LN 80 OHM SMD
Series：MCZ-DH
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：3Ohm
Voltage Rating - DC：5V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max)：0.024" (0.60mm)
Package / Case：0504 (1210 Metric), 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：80 Ohms @ 100 MHz
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for MCZ1210DH800CPTA0G

MCZ1210DH800CPTA0G

Common Mode Chokes Overview

The TDK MCZ1210DH800CPTA0G is a single-channel common mode filter designed for surface mount technology. It operates within a temperature range of -40°C to +85°C and features an impedance of 80 Ohms at 100 MHz with a 25% tolerance. The component supports a maximum DC current of 100 mA and has a maximum DC resistance of 3 Ohms. Housed in a compact 1210 (0403 metric) package measuring 1.25 mm x 1 mm x 0.5 mm, it is shielded and suitable for PCB mounting.

Common Mode Chokes Feature Summary

Suppresses common mode noise while preserving signal integrity on high-speed differential transmission lines up to 6.0 GHz
Provides effective EMI suppression without affecting differential mode data transmission
Shielded construction minimizes external interference and crosstalk

Common Mode Chokes Applications

High-definition multimedia interface (HDMI) circuits
Universal Serial Bus 3.0 (USB 3.0) interfaces
SuperSpeed differential transmission line noise suppression

Common Mode Chokes Procurement Notes

Verify the suffix A0G confirms the standard commercial temperature range of -40°C to +85°C. Confirm the part number matches the 80 Ohm impedance specification at 100 MHz. Ensure the manufacturer is TDK Corporation. Check RoHS compliance status via official documentation before integration.

Common Mode Chokes Selection Notes

Select this component for applications requiring noise suppression on high-speed differential pairs where signal distortion must be minimized. Compare against automotive-grade variants like the D25 suffix if extended temperature ranges are required. Evaluate impedance characteristics against specific bus frequencies to ensure adequate attenuation without degrading signal quality.

Common Mode Chokes Part Context

This component belongs to the MCZ-DH series of common mode chokes from TDK. These devices are engineered specifically for protecting high-speed digital interfaces from electromagnetic interference. The series offers various impedance values tailored to different frequency requirements while maintaining low insertion loss for the desired differential signals.
