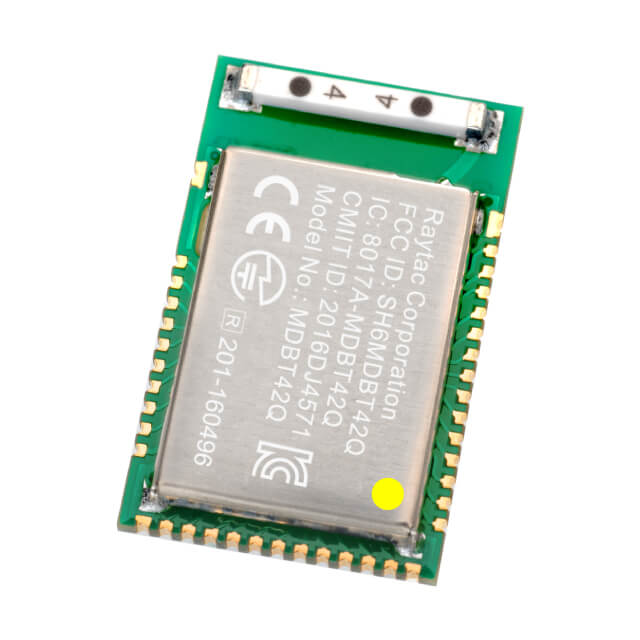

RF Transceiver Modules And Modems MDBT42Q-AT product image

MDBT42Q-AT

Description：RF TXRX MODULE BT CHIP SMD
Series：-
Mfr：Raytac
Package：Bag

SKU:69ff1d5f7f1a Category: RF Transceiver Modules and Modems Brand: Raytac

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MDBT42Q-AT is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Raytac. Its product description is RF TXRX MODULE BT CHIP SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for MDBT42Q-AT

Description：RF TXRX MODULE BT CHIP SMD
Series：-
Mfr：Raytac
Package：Bag
RF Family/Standard：Bluetooth
Protocol：Bluetooth v5.2
Modulation：-
Frequency：2.4GHz
Data Rate：2Mbps
Power - Output：4dBm
Sensitivity：-96dBm
Serial Interfaces：UART
Antenna Type：Integrated, Chip
Utilized IC / Part：nRF52810
Memory Size：192kB Flash, 24kB RAM
Voltage - Supply：1.7V ~ 3.6V
Current - Receiving：3.5mA ~ 11.2mA
Current - Transmitting：2.1mA ~ 15.4mA
Mounting Type：Surface Mount
Operating Temperature：-40°C ~ 85°C (TA)
Package / Case：39-SMD Module

RF Transceiver Modules And Modems datasheet and documents for MDBT42Q-AT

MDBT42Q-AT
