ME16WS01-1N20TIR

RF Transceiver Modules And Modems Overview

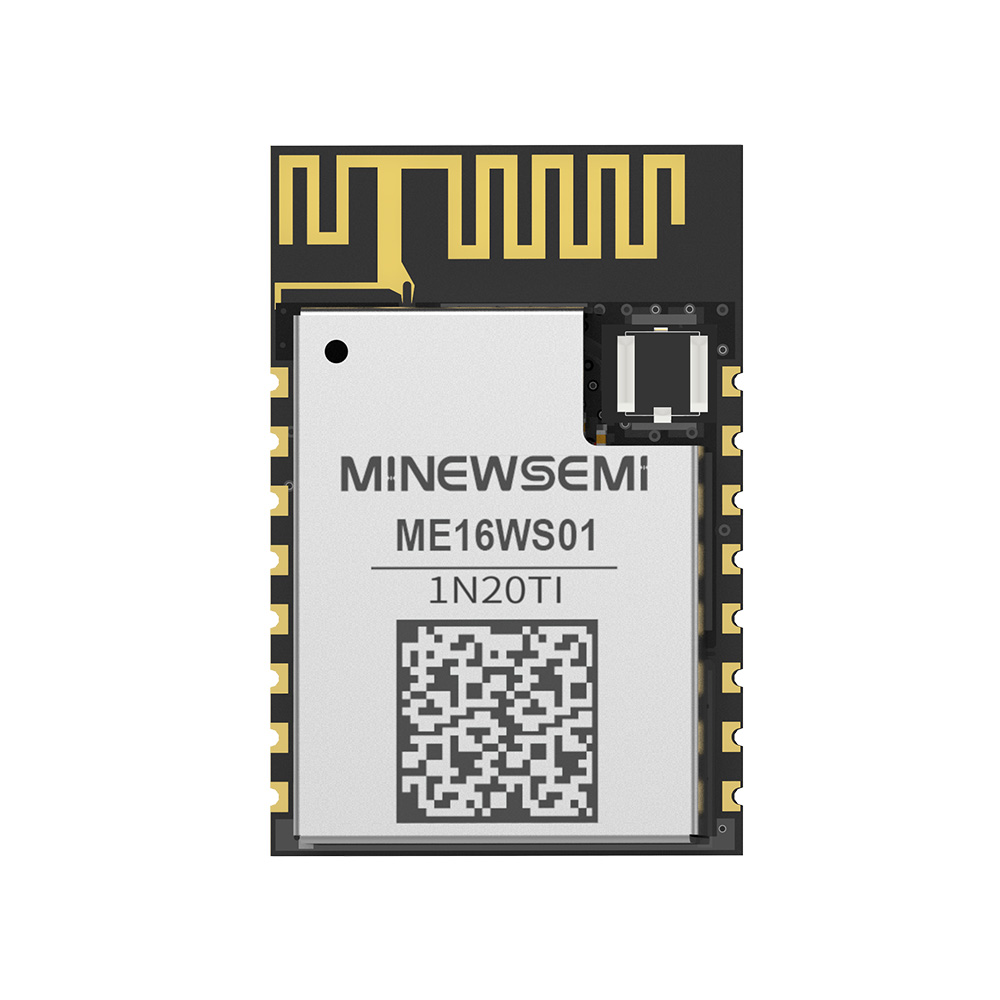

The ME16WS01-1N20TIR is a dual-band wireless Wi-Fi module based on the RTL8720DN SoC. It integrates an ARM-v8 core compatible with Cortex-M4F and features a flash capacity of 2MB. The module supports BLE reception sensitivity of -98dBm and Wi-Fi reception sensitivity of -95dBm. It includes 11 GPIO pins and utilizes PCB or IPEX antenna options.

RF Transceiver Modules And Modems Feature Summary

• Dual-band wireless connectivity capability
• Integrated high-performance dual-core architecture
• Support for Wi-Fi AP and STA operational modes

RF Transceiver Modules And Modems Applications

• Smart home devices
• Industrial automation controllers
• Portable medical equipment

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix against official MinewSemi documentation to confirm pinout, antenna type, and firmware version compatibility. Ensure the RTL8720DN-based variant matches your system's regulatory certification requirements and interface specifications before procurement.

RF Transceiver Modules And Modems Selection Notes

Select this module when dual-band Wi-Fi and Bluetooth integration are required in a compact form factor. The RTL8720DN platform offers a balance of processing power and connectivity for IoT applications needing both AP and STA functionalities simultaneously.

RF Transceiver Modules And Modems Part Context

This model belongs to the MinewSemi Wi-Fi module series, which leverages Realtek semiconductor solutions. It is designed for embedded systems requiring robust wireless communication capabilities within space-constrained industrial and consumer electronics.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes include other modules based on the RTL8720DN SoC from MinewSemi or compatible vendors. Verify mechanical dimensions and pin compatibility when considering alternative dual-band Wi-Fi+BLE modules.
