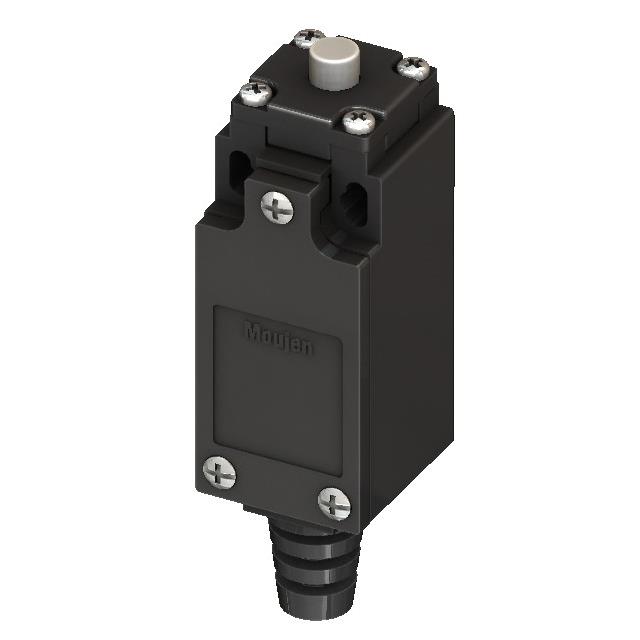

MEA-9111-PT

MEA-9111-PT is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH LIMIT SPDT 6A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MEA-9111-PT

• Description：SWITCH LIMIT SPDT 6A 250V
• Series：MEA
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT (DB/DM)
• Switch Function：On-Mom
• Current Rating (Amps)：6A (AC), 400mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：-
• Operating Force：500gf
• Release Force：150gf
• Operating Position：-
• Pretravel：0.080" (2.0mm)
• Differential Travel：0.039" (1.0mm)
• Overtravel：0.157" (4.0mm)
• Operating Temperature：-15°C ~ 70°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MEA-9111-PT
