MFT6P3A5S223

Single FETs, MOSFETs Overview

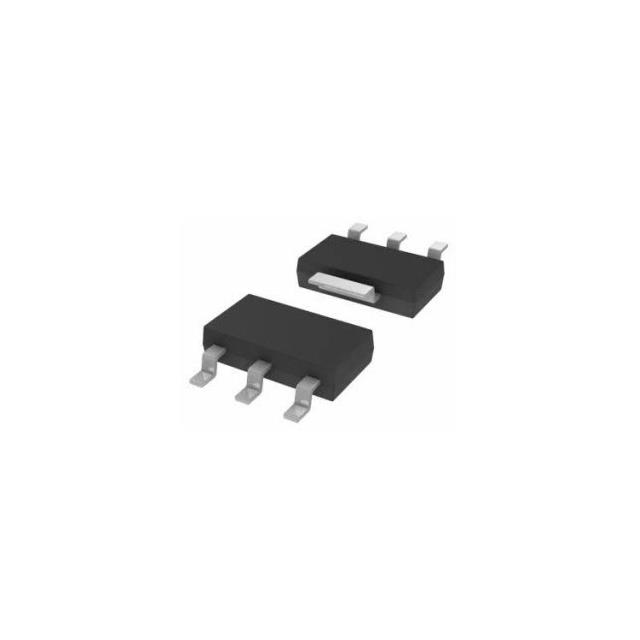

The MFT6P3A5S223 is a P-Channel MOSFET manufactured by Meritek. It features a maximum drain-source voltage (V_DSS) of 60 V and a continuous drain current (I_D) of 3.5 A at ambient temperature (Ta). This component belongs to the single FET category within Meritek's semiconductor portfolio, designed for surface-mount applications requiring reliable switching performance in compact electronic circuits.

Single FETs, MOSFETs Feature Summary

• P-Channel configuration for high-side or low-side switching control
• Surface-mount package design for automated assembly integration
• Rated for 60 V breakdown voltage capability
• Continuous current handling up to 3.5 A under specified thermal conditions

Single FETs, MOSFETs Applications

• Power supply load switching
• Battery protection circuits
• Motor control interfaces
• General-purpose low-voltage switching

Single FETs, MOSFETs Procurement Notes

Verify the complete part number including any suffixes against official Meritek documentation to ensure correct pinout and electrical characteristics. Confirm package type and tape/reel specifications with authorized distributors prior to ordering. Cross-reference datasheet revisions to confirm compliance with current RoHS and REACH standards. Request sample units for initial circuit validation before committing to bulk production volumes.

Single FETs, MOSFETs Selection Notes

Select this component when a P-Channel MOSFET with 60 V rating and 3.5 A continuous current capacity is required. Ensure the application’s thermal environment supports the Ta-rated current specification. Verify gate drive voltage compatibility with the device’s threshold characteristics. Consider alternative packages if space constraints differ from the standard SMD footprint provided in the official mechanical drawings.

Single FETs, MOSFETs Part Context

Meritek Electronics Corporation produces advanced circuit protection devices, passive components, semiconductors, and PCB products. The MFT series represents their discrete semiconductor offerings, targeting industrial, automotive, and consumer electronics markets. This specific MOSFET falls under their general-purpose switching component line, supporting designs in power management and signal routing applications.

Single FETs, MOSFETs Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided source material. Engineers should consult official Meritek documentation or authorized distributor databases for equivalent cross-references based on matching electrical parameters and package dimensions.
