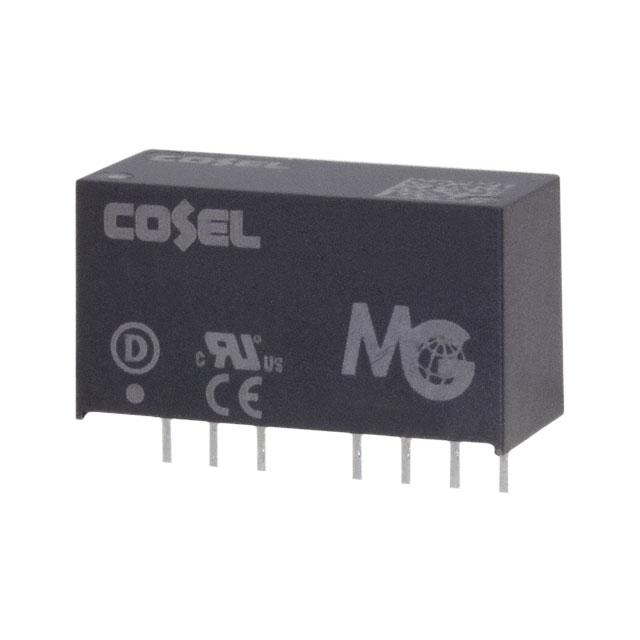

MGXW62415

MGXW62415 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is DC DC CONVERTER +/-15V 6W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MGXW62415

• Description：DC DC CONVERTER +/-15V 6W
• Series：MGX (6W)
• Mfr：Cosel USA, Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：6V
• Voltage - Input (Max)：60V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA, 200mA
• Power (Watts)：6 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CE, cURus, DEMKO
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MGXW62415
