MIC37150-3.3WR-TR

$1.64

Description：IC REG LINEAR 3.3V 1.5A 3-SPAK
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR)

SKU:88907d6313eb Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MIC37150-3.3WR-TR is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC REG LINEAR 3.3V 1.5A 3-SPAK. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for MIC37150-3.3WR-TR

Description：IC REG LINEAR 3.3V 1.5A 3-SPAK
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：6V
Voltage - Output (Min/Fixed)：3.3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.5V @ 1.5A
Current - Output：1.5A
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：-
Control Features：-
Protection Features：Over Current, Over Temperature, Reverse Polarity
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount

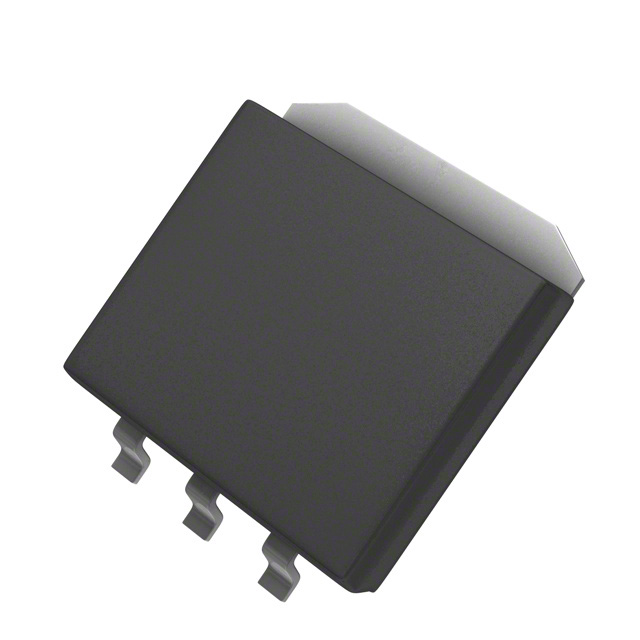

Package / Case：SPAK-3 (3 Leads + Tab)
Supplier Device Package：3-SPAK
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for MIC37150-3.3WR-TR

MIC37150-3.3WR-TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The MIC37150-3.3WR-TR is a fixed-output linear low-dropout (LDO) voltage regulator manufactured by Microchip Technology. It provides a stable 3.3V output with a maximum continuous current of 1.5A. The device features a maximum input voltage rating of 6V and maintains a typical voltage drop of 0.5V at full load. It operates within an extended temperature range of -40°C to +125°C. The component is housed in a surface-mount 3-SPAK package, which includes three leads and a thermal pad for efficient heat dissipation.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Integrated protection mechanisms including overcurrent limiting, thermal shutdown, and reverse polarity protection.
Designed for high-efficiency power management with low dropout characteristics under heavy loads.
Robust construction suitable for demanding industrial and automotive environments.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable electronic devices requiring stable 3.3V logic supplies
Industrial control systems operating in harsh environments
Automotive electronics modules

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the complete part number MIC37150-3.3WR-TR against official Microchip documentation to ensure correct output voltage and packaging configuration. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into assembly processes. Cross-reference datasheet specifications for thermal performance in your specific PCB layout design.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a 3.3V output is required with up to 1.5A current capability and an input voltage not exceeding 6V. The 3-SPAK package offers a compact solution with integrated thermal management. Ensure the application environment stays within the specified -40°C to +125°C operating range for reliable performance.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the MIC37150 series of LDO regulators from Microchip Technology. The series is designed for applications needing robust power regulation with built-in safety features. The '3.3W' suffix indicates the fixed 3.3V output variant, while '-TR' denotes the tape and reel packaging format for automated assembly.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Consult official Microchip substitution guides or contact technical support for verified alternative part numbers. Do not assume pin-compatible substitutes without verifying electrical parameters and thermal characteristics against the original datasheet.
