Product Detailed Parameters
- Description：I.MX 8DUALXPLUS
- Series：i.MX8Q
- Mfr：NXP USA Inc.
- Package：Tape & Reel (TR)
- Core Processor：ARM® Cortex®-A53, ARM® Cortex®-M4F
- Number of Cores/Bus Width：3 Core, 64-Bit
- Speed：1.2GHz, 264MHz
- Co-Processors/DSP：Multimedia; NEON, Hi-Fi4 DSP
- RAM Controllers：DDR3L SDRAM, LPDDR4 DRAM
- Graphics Acceleration：Yes
- Display & Interface Controllers：LCD, LVDS, MIPI-CSI, MIPI-DSI
- Ethernet：10/100/1000Mbps (2)
- SATA：-
- USB：USB 2.0 OTG + PHY (1), USB 3.0 OTG + PHY (1)
- Voltage - I/O：1.8V, 2.5V, 3.3V
- Operating Temperature：-40°C ~ 125°C (TJ)
- Security Features：3DES, A-HAB, ARM TZ, CAAM, DES, MD5, SHA, SNVS
- Mounting Type：Surface Mount

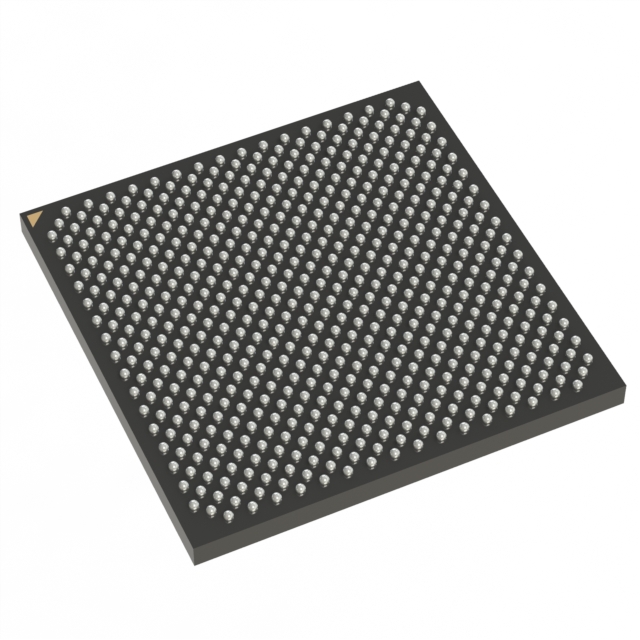

- Package / Case：609-BFBGA
- Supplier Device Package：609-FBGA (21x21)
- Additional Interfaces：CANbus, I2C, MMC/SD/SDIO, PCIe, QSPI, UART
- Grade：-
- Qualification：-
Download product information
Overview
The MIMX8DX5AVLFZACR is an i.MX 8DualXPlus automotive and infotainment application processor from NXP Semiconductors. It features a multicore architecture with two Cortex-A35 cores operating at 1.2 GHz and one Cortex-M4F core running at 264 MHz. The device includes a GPU, VPU, and HiFi 4 DSP for multimedia processing. It supports LPDDR4 memory without ECC and DDR3L with optional ECC. Connectivity options include USB 3.0, dual Gigabit Ethernet with AVB, PCIe 3.0, and multiple CAN interfaces. The processor is housed in a 21x21 mm FCPBGA package.
Feature Summary
- Multicore processing with Cortex-A35 and Cortex-M4F cores
- Integrated GPU, VPU, and HiFi 4 DSP for multimedia
- Advanced security features including AHAB and CAAM
- Multiple display outputs via MIPI-DSI and LVDS
Applications
- Automotive infotainment systems
- Digital cockpit displays
- Telematics control units
- Industrial automation controllers
Procurement Notes
Verify the specific revision level against the latest datasheet to ensure compatibility with required System Controller Firmware (SCFW) versions. Confirm that the chosen Board Support Package aligns with the minimum SCFW release needed for stable operation. Check for any relevant chip errata that may impact design implementation or require workarounds during development.
Selection Notes
Select this part when dual-core A35 performance is sufficient alongside real-time M4F control. Ensure the design accommodates the 21x21 mm FCPBGA footprint. Verify memory interface requirements match the supported LPDDR4 or DDR3L types. Consider the availability of peripheral interfaces like USB 3.0 and dual Ethernet for system connectivity needs.
Part Context
This component belongs to the i.MX 8X family, specifically the DualXPlus variant within the automotive and infotainment segment. It shares architectural similarities with the QuadXPlus but offers a reduced core count and feature set tailored for cost-sensitive applications requiring robust multimedia and connectivity capabilities.
Replacement Considerations
MIMX8DX5AVLFZAC is the tray-packaged equivalent of this reel-part. For higher performance, consider the MIMX8QX series. For lower core counts, explore the MIMX8UX series.
