MIMX8MD6CVAHZAA

Overview

The MIMX8MD6CVAHZAA is an i.MX 8M Dual application processor featuring a heterogeneous multicore architecture with two Arm Cortex-A53 cores and one Cortex-M4 core. It supports industrial operating temperatures ranging from -40°C to +105°C. The device integrates a Vivante GC7000-Lite GPU, a hardware video decoding unit capable of 4Kp60 HEVC playback, dual MIPI-CSI camera interfaces, and dual display outputs including HDMI 2.0a and MIPI-DSI. Memory support includes DDR3L, DDR4, and LPDDR4.

Feature Summary

• Heterogeneous processing combining high-performance Cortex-A53 cores for Linux/Android workloads with a dedicated Cortex-M4 core for real-time control tasks.
• Advanced multimedia capabilities featuring hardware-accelerated 4K UltraHD video playback with HDR support and professional-grade audio processing via multiple SAI/I2S interfaces.
• Industrial-grade reliability with extended temperature range specifications and comprehensive security features including secure boot and hardware encryption engines.

Applications

• Industrial human-machine interface (HMI) panels
• Smart home central controllers
• Edge multimedia gateways

Procurement Notes

Verify the specific suffix against official NXP documentation to confirm the exact temperature grade and package variant. Ensure compatibility with required memory types such as LPDDR4 or DDR3L before procurement. Confirm that the component meets the thermal requirements for the intended industrial environment.

Selection Notes

Select this model when dual-core performance is sufficient for the application workload. Choose this variant over Quad-core models if cost optimization is prioritized while maintaining industrial temperature ratings. Verify that the absence of hardware video encoding does not impact system design requirements.

Part Context

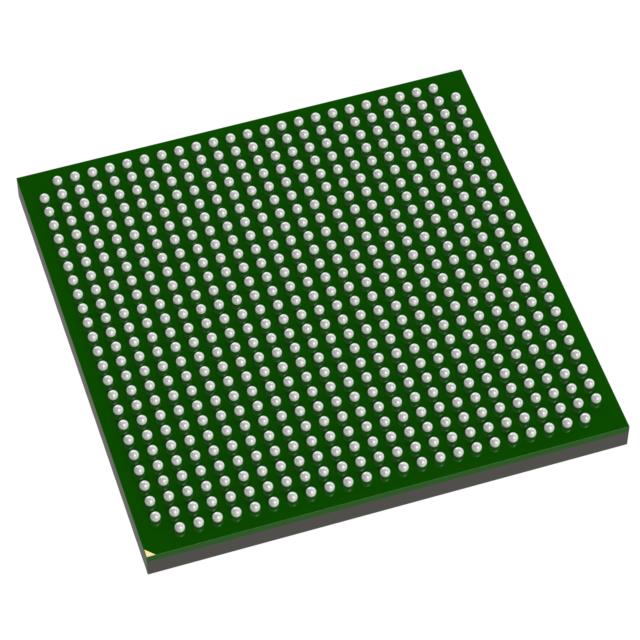

This component belongs to the NXP i.MX 8M family, designed for edge computing applications requiring advanced multimedia processing. It serves as a bridge between consumer electronics and industrial automation, offering a balance of power efficiency and processing capability within a compact FCBGA package.

Replacement Considerations

The MIMX8MQ6CVAHZAB is a confirmed Quad-core alternative within the same series. Consider this replacement only if additional processing cores are required for complex multitasking scenarios.
