MJG--ME-8112--T3

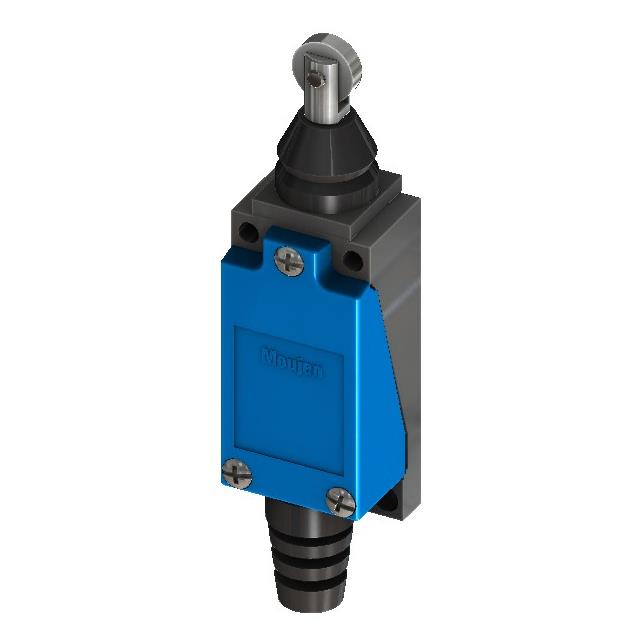

MJG–ME-8112–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SPDT-DB/DM Enclosed Limit Swtich. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–ME-8112–T3

• Description：SPDT-DB/DM Enclosed Limit Swtich
• Series：ME
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT (DB/DM)
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 0.4A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Roller Plunger
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：Metal Roller
• Operating Force：900gf
• Release Force：150gf
• Operating Position：-
• Pretravel：0.060" (1.5mm)
• Differential Travel：0.027" (0.7mm)
• Overtravel：0.157" (4.0mm)
• Operating Temperature：-15°C ~ 70°C
• Voltage Rating - DC：115 V

Limit Switches datasheet and documents for MJG–ME-8112–T3
