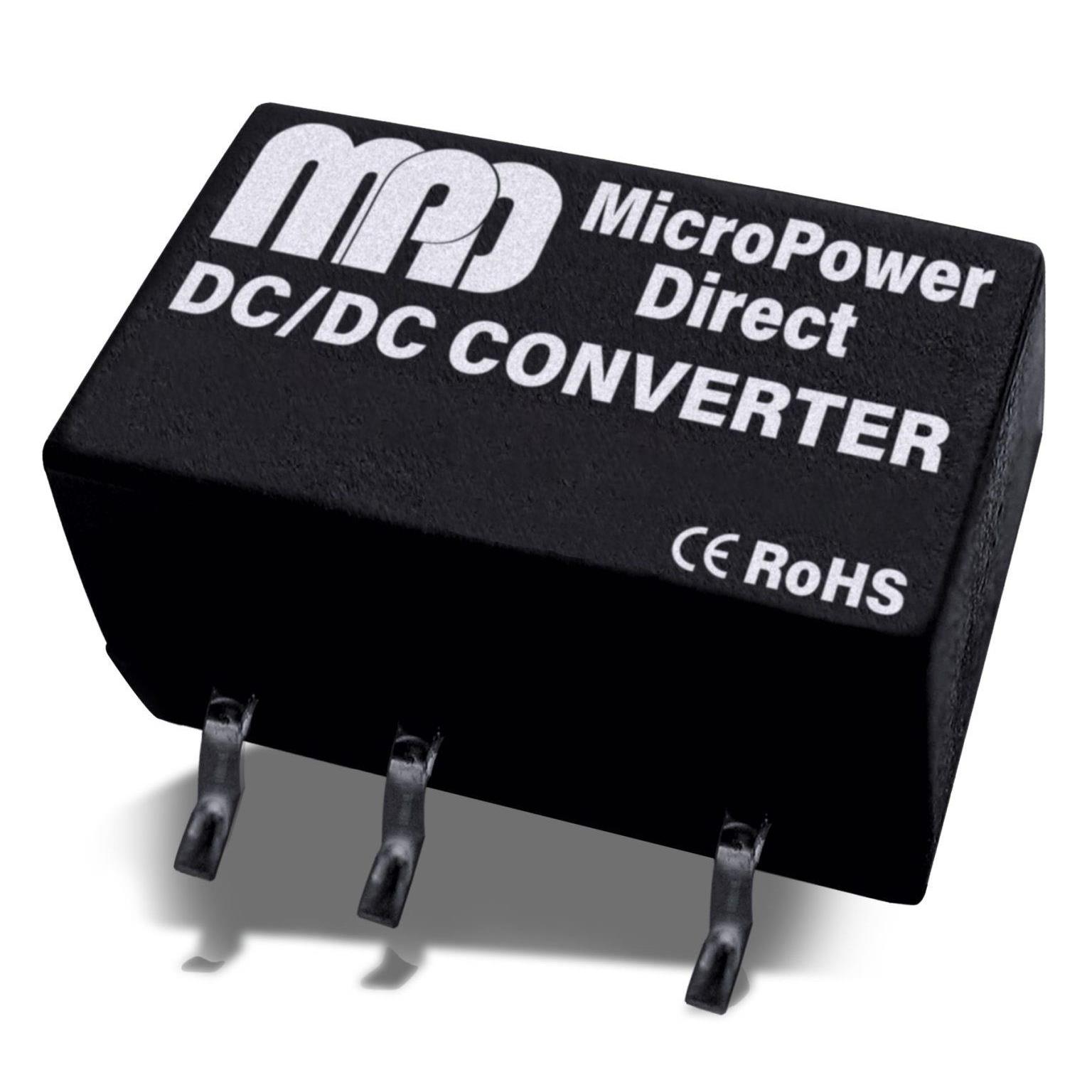

ML105S-03B

ML105S-03B is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,1W,5V IN,3.3V OUT,1.5KV,. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ML105S-03B

• Description：DC/DC,1W,5V IN,3.3V OUT,1.5KV,
• Series：ML100B
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：303mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：Industrial, ITE (Commercial)
• Features：Proportional Output, SCP
• Operating Temperature：-40°C ~ 105°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：0.53" L x 0.44" W x 0.29" H (13.5mm x 11.4mm x 7.3mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ML105S-03B
