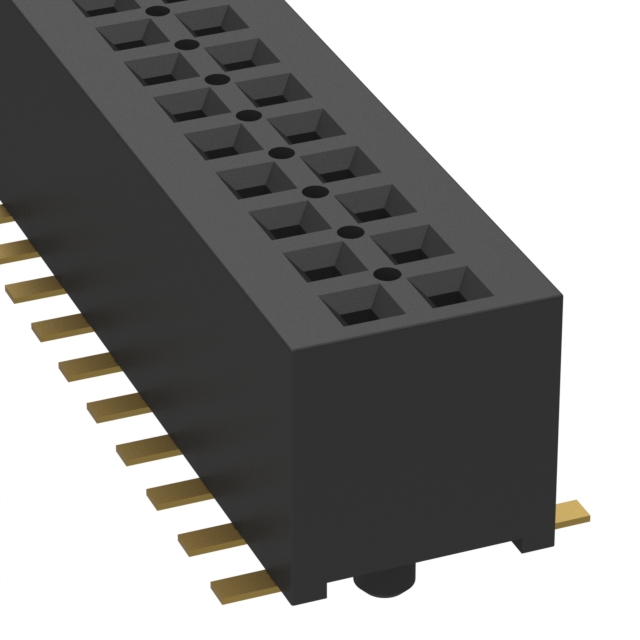

MLE-120-01-G-DV-A-P-TR

MLE-120-01-G-DV-A-P-TR is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is 1MM MICRO STRIPS. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for MLE-120-01-G-DV-A-P-TR

• Description：1MM MICRO STRIPS
• Series：Tiger Eye™ MLE
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR),Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.039" (1.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.039" (1.00mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.130" (3.30mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：-
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide, Pick and Place
• Current Rating (Amps)：2.9A per Contact
• Voltage Rating：310VAC
