MLP2012V1R0TT0S1

Fixed Inductors Overview

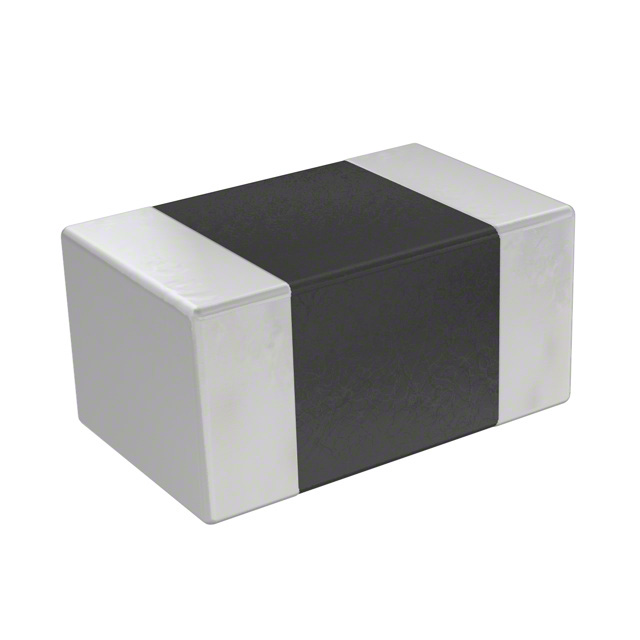

The TDK MLP2012V1R0TT0S1 is a surface-mount fixed inductor designed for commercial applications. It features a nominal inductance of 1 µH and a rated current of 700 mA. The component exhibits a maximum DC resistance of 338 mΩ, with some sources citing 260 mΩ. It utilizes a compact 2012 (mm) package size, suitable for automated surface mount assembly.

Fixed Inductors Feature Summary

• Surface-mount construction optimized for high-volume automated assembly processes
• Fixed inductance value providing stable filtering characteristics in power circuits
• Compact footprint enabling dense circuit board layouts

Fixed Inductors Applications

• Commercial grade electronic equipment power supplies
• General-purpose signal filtering in consumer electronics
• DC-DC converter input or output stages

Fixed Inductors Procurement Notes

Verify the specific datasheet version to confirm the exact DC resistance value, as documentation varies between 260 mΩ and 338 mΩ. Ensure the application environment remains within commercial temperature ranges, as this part is not rated for automotive or industrial extremes. Confirm availability through authorized TDK distributors to guarantee authenticity and traceability.

Fixed Inductors Selection Notes

Select this component when a 1 µH inductance is required in a 2012 package with a minimum 700 mA current handling capability. Consider the impedance tolerance and DC resistance specifications relative to the target power supply efficiency requirements. Ensure the PCB land pattern matches the standard 2012 SMD dimensions for proper solder joint formation.

Fixed Inductors Part Context

This inductor belongs to TDK's MLP series of multilayer ceramic inductors. These components are engineered for cost-effective mass production in commercial electronics. The series offers various inductance values within standardized footprints, allowing designers to maintain consistent mechanical constraints across different product lines while adjusting electrical performance.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching inductance, current rating, and physical dimensions with other manufacturers' commercial-grade MLCC-style inductors.
