MLS682M020EK0D

MLS682M020EK0D is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Cornell Dubilier Knowles. Its product description is CAP ALUM 6800UF 20% 20V FLATPACK. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MLS682M020EK0D

• Description：CAP ALUM 6800UF 20% 20V FLATPACK
• Series：MLS
• Mfr：Cornell Dubilier Knowles
• Package：Bulk
• Capacitance：6800 µF
• Tolerance：±20%
• Voltage - Rated：20 V
• ESR (Equivalent Series Resistance)：84mOhm @ 120Hz
• Lifetime @ Temp.：10000 Hrs @ 85°C
• Operating Temperature：-55°C ~ 125°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：11 A @ 120 Hz
• Ripple Current @ High Frequency：12.2 A @ 20 kHz
• Lead Spacing：1.000" (25.40mm)
• Size / Dimension：1.500" L x 1.750" W (38.10mm x 44.45mm)
• Height - Seated (Max)：0.500" (12.70mm)
• Surface Mount Land Size：-
• Mounting Type：Chassis Mount

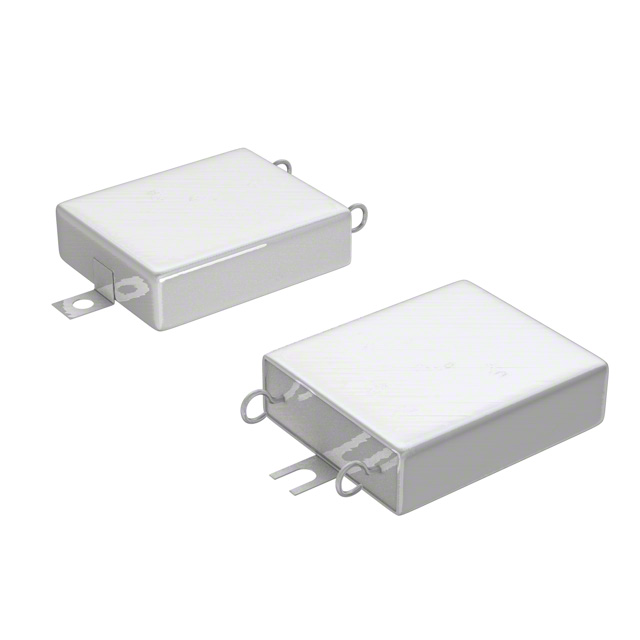

• Package / Case：FlatPack, Tabbed
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for MLS682M020EK0D
