MLV-030D-E1BS-N

Pressure Sensors Transducers Overview

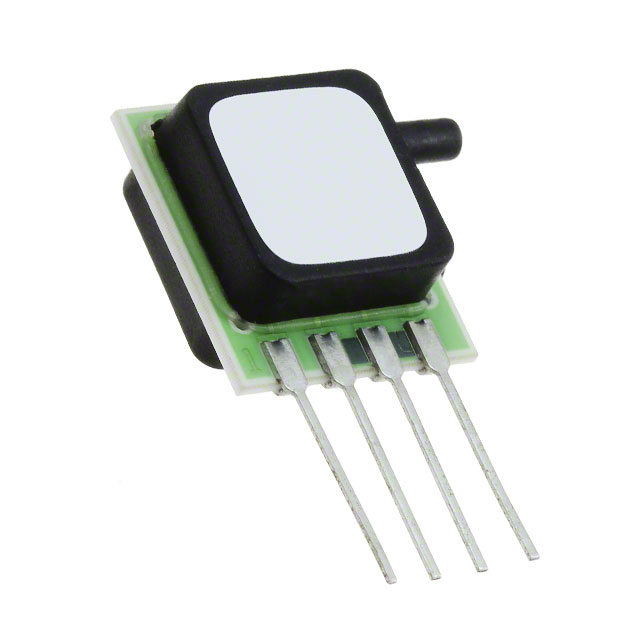

The Amphenol All Sensors MLV-030D-E1BS-N is a board mount pressure sensor from the MLV series. It features a differential pressure type with a working pressure of 30 psi (±206.84 kPa). The device utilizes a Wheatstone bridge analog output, generating 0 mV to 37.5 mV at 5 V supply. It employs a 4-SIP package with dual barbed ports on the same side. Operating temperature ranges from -25°C to +85°C with an accuracy of ±0.5%.

Pressure Sensors Transducers Feature Summary

• Provides differential pressure measurement via a Wheatstone bridge analog output interface.
• Features dual barbed ports positioned on the same side for convenient tubing connection.
• Designed for through-hole surface mounting in compact electronic assemblies.

Pressure Sensors Transducers Applications

• HVAC system airflow monitoring
• Medical device gas flow sensing
• Industrial process control instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure compatibility with required port types and electrical specifications. Confirm RoHS compliance status and environmental operating limits prior to integration into final product designs.

Pressure Sensors Transducers Selection Notes

Select this component when differential pressure sensing within a 30 psi range is required. Ensure the analog millivolt output aligns with the host microcontroller or amplifier input capabilities. Verify that the SIP-4 package dimensions fit the available PCB real estate.

Pressure Sensors Transducers Part Context

This part belongs to the Amphenol MLV series of board mount pressure sensors. These devices are engineered for low-pressure applications requiring reliable analog signal generation. The series supports various pressure ranges and interface configurations for diverse industrial needs.

Pressure Sensors Transducers Replacement Considerations

Cross-reference with other MLV series variants such as MLV-030D-E1BD-N for different port styles. Check manufacturer documentation for direct pin-compatible substitutes if form factor constraints exist.

Pressure Sensors Transducers FAQ

What is the output signal type?

The MLV-030D-E1BS-N provides an analog voltage output ranging from 0 mV to 37.5 mV at a 5 V supply.

What is the pressure type?

It is a differential pressure sensor designed to measure the difference between two pressure inputs.
