MLV-L30D-E1NS-N

Pressure Sensors Transducers Overview

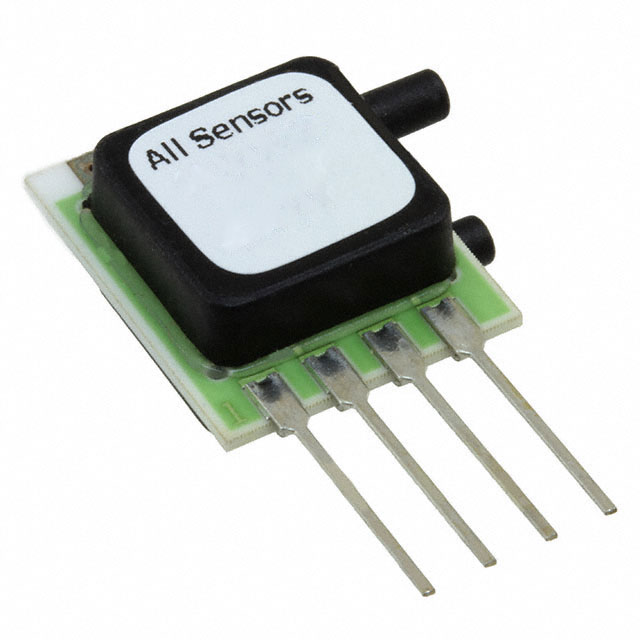

The MLV-L30D-E1NS-N is a board-mount differential pressure sensor from the Amphenol All Sensors MLV series. It features a Wheatstone bridge output with a sensitivity of 20 mV at 5 V excitation. The device operates within a -25°C to +85°C temperature range and supports a supply voltage of 12 V. It utilizes a SIP-4 package with dual barbless ports on the same side, designed for low-pressure applications up to 30 inH2O.

Pressure Sensors Transducers Feature Summary

• Provides compensated analog output via Wheatstone bridge architecture
• Features dual barbless ports positioned on the same side for streamlined integration
• Operates reliably across extended industrial temperature ranges

Pressure Sensors Transducers Applications

• HVAC system monitoring
• Low-pressure fluid flow measurement
• Industrial process control instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure compatibility with required port types and electrical characteristics. Confirm that the SIP-4 package and dual-port orientation align with your PCB layout constraints before finalizing procurement decisions.

Pressure Sensors Transducers Selection Notes

Select this component when a differential pressure sensor with a 30 inH2O range and analog Wheatstone bridge output is required. Ensure the design accommodates the 12 V supply requirement and the physical dimensions of the SIP-4 package with dual barbless connections.

Pressure Sensors Transducers Part Context

This part belongs to the MLV series of low-voltage pressure sensors manufactured by Amphenol All Sensors. The series is characterized by high output signals at low operating voltages, making it suitable for compact electronic designs requiring precise pressure sensing capabilities.

Pressure Sensors Transducers Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Cross-reference specifications such as pressure range, output type, and package style to ensure functional equivalence.
