MMT-105-01-SM-SH-K-TR

$1.53

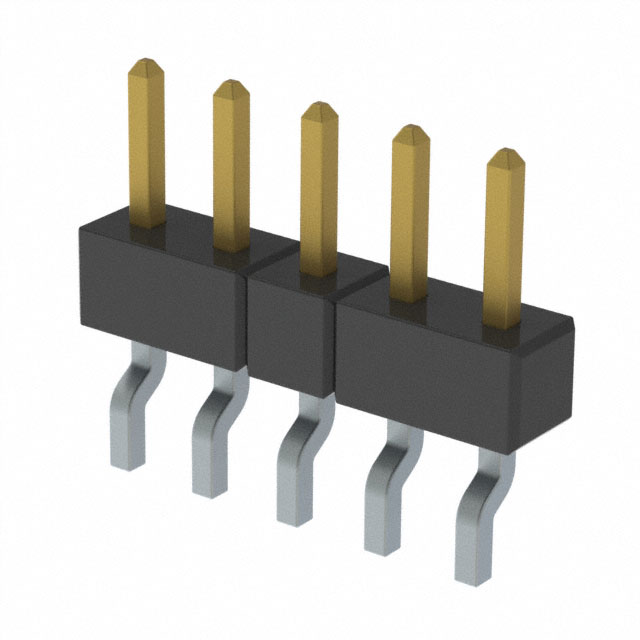

Description：CONN HEADER SMD R/A 5POS 2MM
Series：MMT
Mfr：Samtec Inc.
Package：Tape & Reel (TR)

SKU:464009bc129b Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：chipapex@foxmail.com
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MMT-105-01-SM-SH-K-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 5POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MMT-105-01-SM-SH-K-TR

Description：CONN HEADER SMD R/A 5POS 2MM
Series：MMT
Mfr：Samtec Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.126" (3.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for MMT-105-01-SM-SH-K-TR

MMT-105-01-SM-SH-K-TR

Headers, Male Pins Overview

The MMT-105-01-SM-SH-K-TR is a Samtec header connector featuring five positions in a single row with a 2.00 mm (0.079 inch) pitch. Designed for surface mount installation, it utilizes right-angle terminals to facilitate board-to-board connections. The component incorporates male pin contacts made of phosphor bronze with tin plating, housed within a black liquid crystal polymer (LCP) insulator rated UL94 V-0. It supports a current rating of 3 A and operates within a temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

Right-angle surface mount design for compact vertical interconnects
Push-pull latching mechanism for secure mating retention
Pick-and-place compatible construction for automated assembly

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board assemblies
High-density electronic modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'K' indicates pick-and-place pad compatibility when sourcing. Confirm RoHS3 compliance status through official manufacturer documentation prior to procurement. Ensure the right-angle orientation matches the PCB layout requirements. Cross-reference the terminal length specifications against mating connector heights to guarantee proper engagement.

Headers, Male Pins Selection Notes

Select this model for applications requiring low-profile right-angle headers with reliable mechanical retention. The 2.00 mm pitch suits high-density layouts where space is constrained. Verify that the 3 A current rating meets the circuit load requirements. Consider the LCP material properties for thermal stability during soldering processes.

Headers, Male Pins Part Context

This component belongs to the Samtec MMT series, which specializes in flexible stacking solutions and board-to-board connectivity. The series offers various configurations including different contact lengths and latching options. The MMT-105 variant specifically provides a five-position configuration optimized for compact electronic designs requiring robust mechanical coupling.
