MN-810Q2-C00

RF Transceiver Modules And Modems Overview

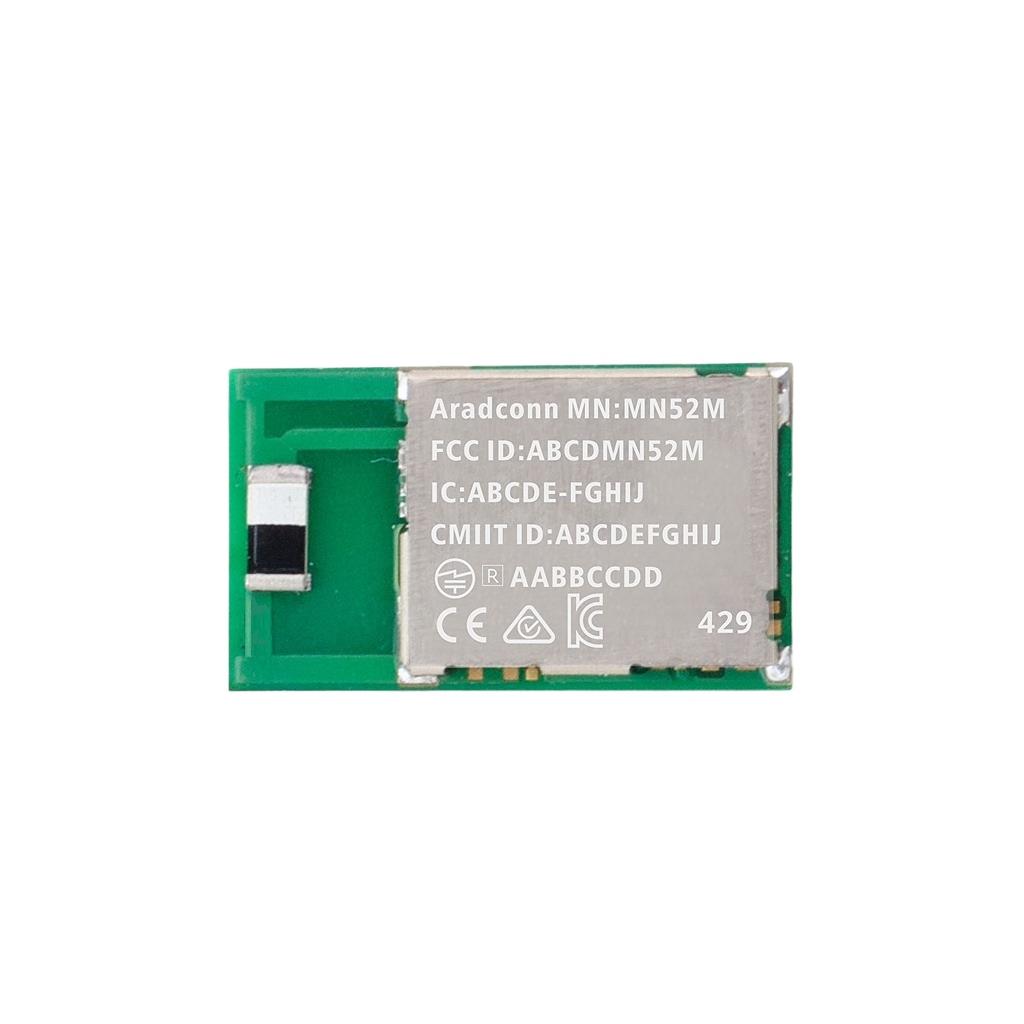

The MN-810Q2-C00 is a Surface Mount Device (SMD) Bluetooth Low Energy (BLE) transceiver module manufactured by Arad Connectivity. It operates within the 2.402GHz to 2.48GHz frequency range and supports Bluetooth v5.4 protocol with GFSK modulation. The module integrates an nRF52810 IC, providing 192kB of flash memory and 24kB of RAM. Key electrical parameters include a maximum output power of 4dBm, a data rate of 2Mbps, and a receive sensitivity of -96dBm. Current consumption is specified at 4.6mA for both transmission and reception modes. The device functions on a supply voltage of 1.71V to 3.6V and features integrated chip antennas.

RF Transceiver Modules And Modems Feature Summary

• Supports Bluetooth v5.4 protocol with GFSK modulation
• Integrates nRF52810 processor with 192kB flash and 24kB RAM
• Features integrated chip antenna design
• Provides multiple serial interface options including GPIO, I2C, SPI, and UART

RF Transceiver Modules And Modems Applications

• Bluetooth Low Energy wireless communication systems
• IoT sensor node integration
• Short-range data transmission devices
• Peripheral connectivity modules

RF Transceiver Modules And Modems Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct configuration. Confirm that the component meets RoHS compliance standards and check the MSL rating for handling requirements during assembly. Ensure the selected variant matches the required pinout and firmware specifications for the target application.

RF Transceiver Modules And Modems Selection Notes

Select this module when a compact SMD BLE solution supporting Bluetooth v5.4 is required. Consider the 4.6mA current consumption profile for battery-powered designs. Verify compatibility with the host system's voltage levels and available serial interfaces. Evaluate the integrated antenna performance against regulatory certification requirements for the target market.

RF Transceiver Modules And Modems Part Context

This module belongs to the RF Transceiver Modules category under Arad Connectivity's portfolio. It utilizes the Nordic Semiconductor nRF52810 SoC as its core processing unit. The product is designed for surface mount technology applications, offering a small footprint suitable for space-constrained electronic assemblies requiring reliable short-range wireless connectivity.

RF Transceiver Modules And Modems Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
