MP07787

Oscillators Overview

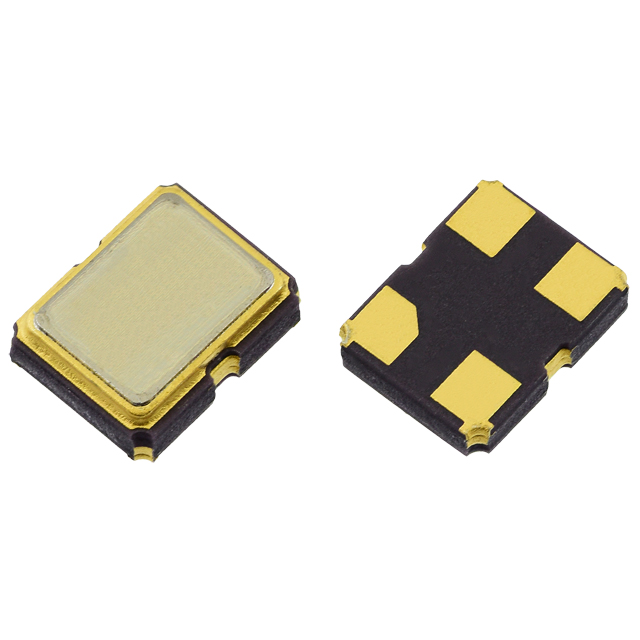

MP07787 is a Golledge Electronics Ltd ultra-low phase noise oscillator, specifically the GXO-3306L/A model. It operates at a nominal frequency of 24.5760 MHz with a supply voltage of 3.3V and CMOS output. The device features ±25ppm frequency stability and supports an operating temperature range from -40°C to 85°C. Maximum current consumption is 20mA.

Oscillators Feature Summary

• Ultra-low phase noise performance for high-frequency applications
• CMOS output interface compatible with digital logic circuits
• Robust frequency stability within specified thermal ranges

Oscillators Applications

• High-speed data communication systems
• Precision timing reference sources
• Telecommunications equipment clock generation

Oscillators Procurement Notes

Verify the exact part number against official Golledge Electronics documentation to confirm specifications. Ensure compatibility with system voltage requirements and thermal constraints before integration. Cross-reference datasheet parameters for frequency stability and output drive levels to validate suitability for specific circuit designs.

Oscillators Selection Notes

Select this component when ultra-low phase noise is critical for signal integrity. Confirm that the 3.3V supply and CMOS output align with target board architecture. Evaluate the -40°C to 85°C range against environmental conditions. Consider the 24.5760 MHz frequency requirement for precise timing synchronization needs in the application.

Oscillators Part Context

This oscillator belongs to the GXO series designed for compact, high-performance timing solutions. It utilizes surface-mount technology for automated assembly. The product line emphasizes low jitter and stable operation under varying thermal conditions, supporting modern electronic design trends toward miniaturization and reliability.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
