MP9184GL-Z

$2.22

Description：IC REG BUCK ADJ 17A 22QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)

SKU:5c969fa12de9 Category: Voltage Regulators - DC DC Switching Regulators Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MP9184GL-Z is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is IC REG BUCK ADJ 17A 22QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MP9184GL-Z

Description：IC REG BUCK ADJ 17A 22QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：3V
Voltage - Input (Max)：20V
Voltage - Output (Min/Fixed)：3V
Voltage - Output (Max)：22V
Current - Output：17A
Frequency - Switching：600kHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

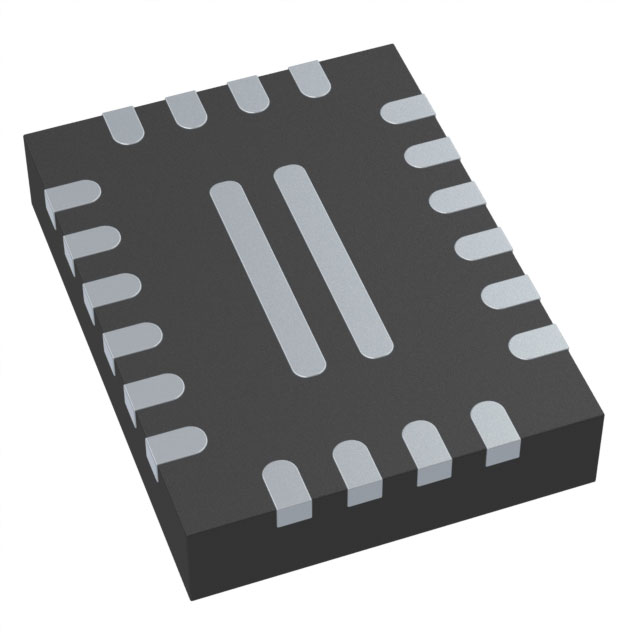

Package / Case：22-PowerVFQFN
Supplier Device Package：22-QFN (3x4)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MP9184GL-Z

MP9184GL-Z

Voltage Regulators - DC DC Switching Regulators Overview

The MP9184GL-Z is a synchronous step-down switching regulator manufactured by Monolithic Power Systems. It operates with an input voltage range of 3 V to 20 V and provides an adjustable output voltage from 3 V to 22 V. The device supports a maximum output current of 17 A. Key electrical parameters include a fixed switching frequency of 600 kHz and a quiescent current of 600 uA. It features a single positive output configuration and includes shutdown functionality. The component is rated for operation within a junction temperature range of -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Synchronous buck topology for efficient power conversion
Wide input voltage range accommodating various supply sources
Integrated shutdown control for power management
High current capability suitable for demanding loads

Voltage Regulators - DC DC Switching Regulators Applications

Industrial equipment power distribution
Telecommunications infrastructure systems
Embedded computing platforms
Consumer electronics main power rails

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's latest documentation to ensure compliance with current environmental standards and pinout configurations. Confirm availability status as supply constraints may affect lead times. Cross-reference the QFN-22 package dimensions with your PCB footprint library to guarantee mechanical compatibility before finalizing the design.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when high output current up to 17 A is required within a compact surface-mount form factor. The 600 kHz switching frequency offers a balance between efficiency and external component size. Ensure the application input voltage remains within the 3 V to 20 V window and that thermal dissipation requirements for the QFN-22 package are met under maximum load conditions.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MP9184 series of synchronous DC-DC converters from Monolithic Power Systems. It is designed for applications requiring robust performance in space-constrained environments. The QFN-22 package facilitates high thermal performance and easy integration into dense PCB layouts compared to larger through-hole alternatives.
