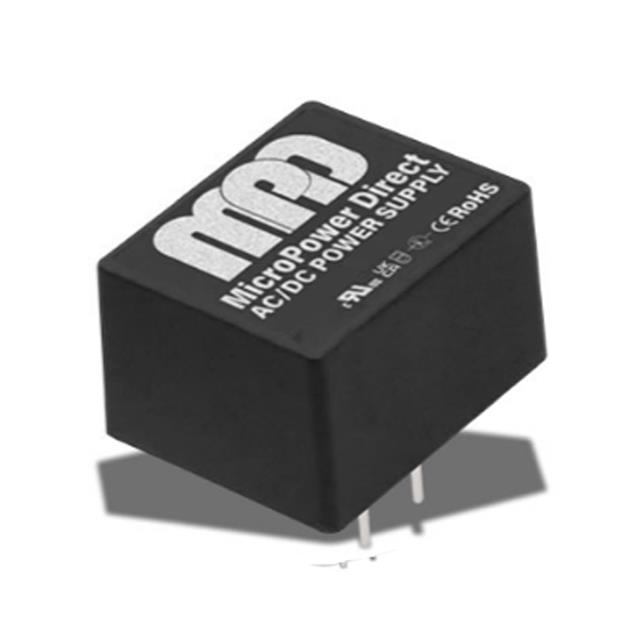

MPM-05SV-05

MPM-05SV-05 is listed in the AC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is AC/DC MODULE ,5W, 5V OUT. Review the specifications below when checking this part for your BOM.

AC DC Converters specifications for MPM-05SV-05

• Description：AC/DC MODULE ,5W, 5V OUT
• Series：MPM-05SV
• Mfr：MicroPower Direct
• Package：Box
• Type：Enclosed
• Number of Outputs：1
• Voltage - Input：90 ~ 305 VAC, 120 ~ 430 VDC
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.515A
• Applications：Industrial, ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 70°C
• Efficiency：72%
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：1.46" L x 1.08" W x 0.79" H (37.0mm x 27.5mm x 20.0mm)
• Approval Agency：CE, cURus, UKCA
• Standard Number：62368-1
• Power (Watts)：5 W

AC DC Converters datasheet and documents for MPM-05SV-05
