MPM3810AGQB-AEC1-P

MPM3810AGQB-AEC1-P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is 6V INPUT, 3.5MHZ,1.2A SYNCHRONOU. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPM3810AGQB-AEC1-P

• Description：6V INPUT, 3.5MHZ,1.2A SYNCHRONOU
• Series：-
• Mfr：Monolithic Power Systems Inc.
• Package：Tape & Reel (TR)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.6V
• Voltage - Input (Max)：6V
• Voltage - Output 1：0.312 ~ 0.72V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.2A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 125°C
• Efficiency：-
• Mounting Type：Surface Mount

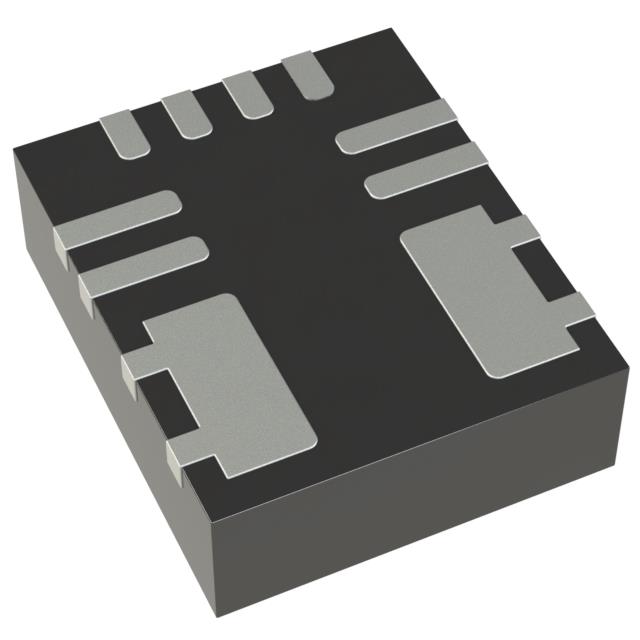

• Package / Case：12-PowerVFQFN Module
• Size / Dimension：0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm)
• Supplier Device Package：12-QFN (3x2.5)
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：Automotive
• Qualification：AEC-Q100

DC DC Converters datasheet and documents for MPM3810AGQB-AEC1-P
