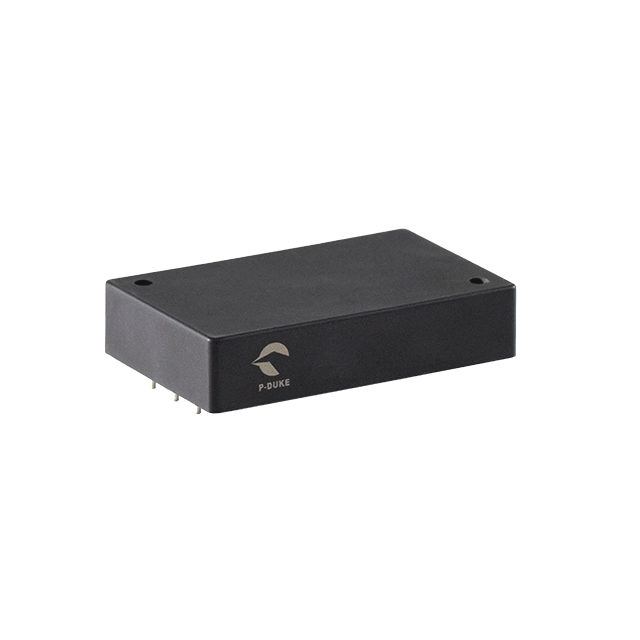

MPQ60-48S24W

MPQ60-48S24W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 60W / VOUT: 24. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPQ60-48S24W

• Description：ISOLATED / 60W / VOUT: 24
• Series：MPQ60W (60W)
• Mfr：P-DUKE Technology
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.5A
• Power (Watts)：60 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：60601-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MPQ60-48S24W
