MPRLS0001PGN001SC

Pressure Sensors Transducers Overview

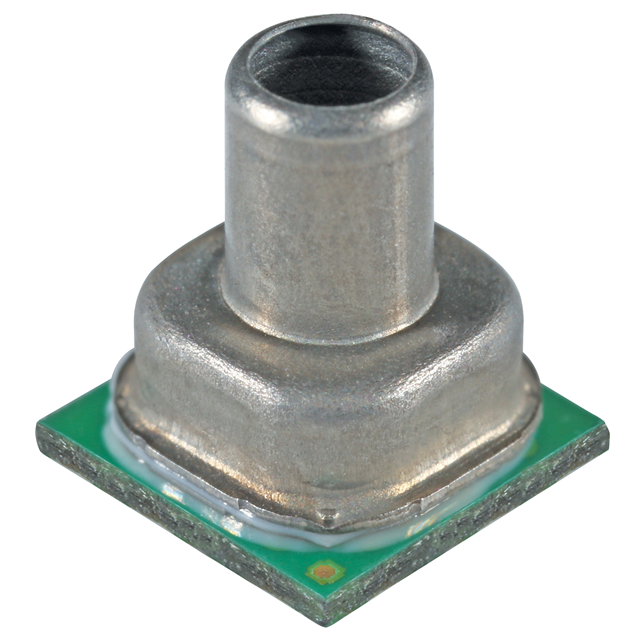

The MPRLS0001PGN001SC is a Honeywell MPR series micro pressure sensor designed for gauge pressure measurement. It features a working pressure range of 1 PSI (6.89 kPa) with a maximum pressure rating of 5 PSI (34.47 kPa). The device provides a 24-bit digital output via an SPI interface, ensuring high resolution across its operating range. Powered by a voltage supply between 1.8V and 3.6V, it incorporates onboard ASIC for temperature compensation and signal amplification. The sensor achieves an accuracy of ±0.25% and operates within a temperature range of -40°C to 85°C. It utilizes a 12-SMD module package with SMT termination and a male port style measuring 0.1 inches (2.5mm).

Pressure Sensors Transducers Feature Summary

• Delivers 24-bit digital resolution through SPI interface for precise data transmission.
• Integrates onboard ASIC providing amplified output and full temperature compensation.
• Features a compact 12-SMD surface mount package suitable for automated assembly.

Pressure Sensors Transducers Applications

• Medical devices requiring low-pressure monitoring
• Consumer appliances with gas or air flow control
• Industrial HVAC systems

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'SC' against official Honeywell documentation to confirm exact packaging and tape-and-reel specifications. Ensure compatibility with SPI communication protocols and voltage levels during integration. Confirm port dimensions match system requirements prior to procurement.

Pressure Sensors Transducers Selection Notes

Select this component for applications demanding high-resolution digital pressure sensing in space-constrained environments. The integrated temperature compensation simplifies calibration efforts. Verify that the 1 PSI gauge range aligns with the target application's pressure profile and that the SPI interface matches the host controller capabilities.

Pressure Sensors Transducers Part Context

This part belongs to the Honeywell MPR MicroPressure sensor family, which utilizes piezoresistive silicon technology. The series is characterized by its small footprint and robust performance in various environmental conditions. The MPR line supports both absolute and gauge pressure configurations, catering to diverse industrial and consumer needs.

Pressure Sensors Transducers Replacement Considerations

MPRLS0001PG0000SA is a related model within the same series offering similar specifications. Verify pinout compatibility and software driver support when considering substitution. Note that availability status may differ between these variants.
