MPVZ4006GW6U

Pressure Sensors Transducers Overview

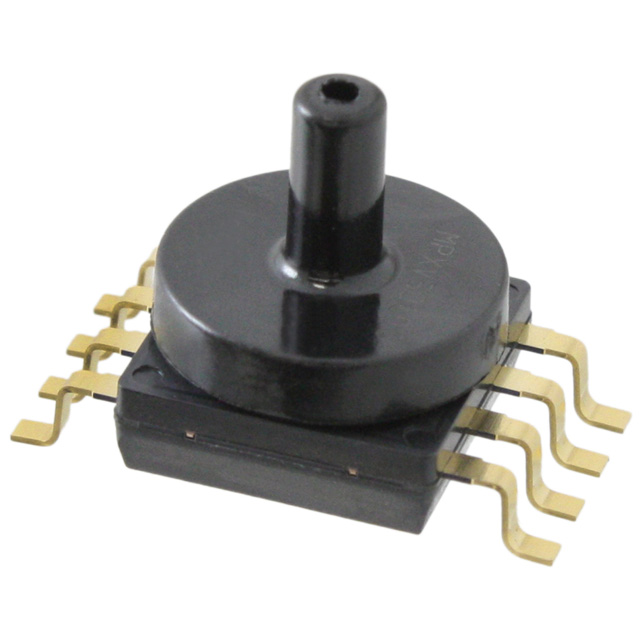

The MPVZ4006GW6U is a piezoresistive pressure sensor from NXP USA Inc., designed for gauge pressure measurement. It features a sensing range of 0 to 6 kPa (0.87 PSI) and operates on a supply voltage between 3 V and 4.6 V. The device utilizes an integrated silicon transducer with on-chip signal conditioning, housed in an 8-SMD surface-mount package. Key electrical parameters include a vented gauge port configuration and a male tube connection dimension of 5.59 mm. This component is engineered for applications requiring compact, reliable pressure monitoring within specified thermal limits.

Pressure Sensors Transducers Feature Summary

• Integrated monolithic silicon piezoresistive technology
• On-chip signal conditioning for direct output
• Vented gauge port design for atmospheric reference

Pressure Sensors Transducers Applications

• Appliance pressure monitoring
• Consumer electronics sensing
• Healthcare device instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'GW6U' against official NXP documentation to confirm pinout and mechanical dimensions. Ensure the operating temperature range aligns with system requirements, as some sources indicate 10°C to 60°C while others may list broader industrial ranges. Confirm that the 8-SMD module package matches the PCB footprint design. Cross-reference the supply voltage limits to ensure compatibility with the target circuit's power rail stability.

Pressure Sensors Transducers Selection Notes

Select this component when a low-pressure gauge measurement up to 6 kPa is required in a small form factor. The integrated signal conditioning reduces external component count compared to bare die sensors. Consider the SOP 8 or SMD module package constraints during layout. Verify that the vented port orientation suits the installation environment to prevent moisture ingress. Ensure the operating temperature range meets the specific application's thermal profile.

Pressure Sensors Transducers Part Context

This part belongs to the MPVZ series of piezoresistive transducers, which are state-of-the-art monolithic silicon sensors. These devices are specifically designed for appliance, consumer, and health applications. The series offers high reliability and accuracy through integrated silicon technology, distinguishing it from older mechanical pressure switches or discrete sensor solutions.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. The MPXV4006GCx series shares similar piezoresistive characteristics but requires verification of exact electrical and mechanical compatibility before substitution.
