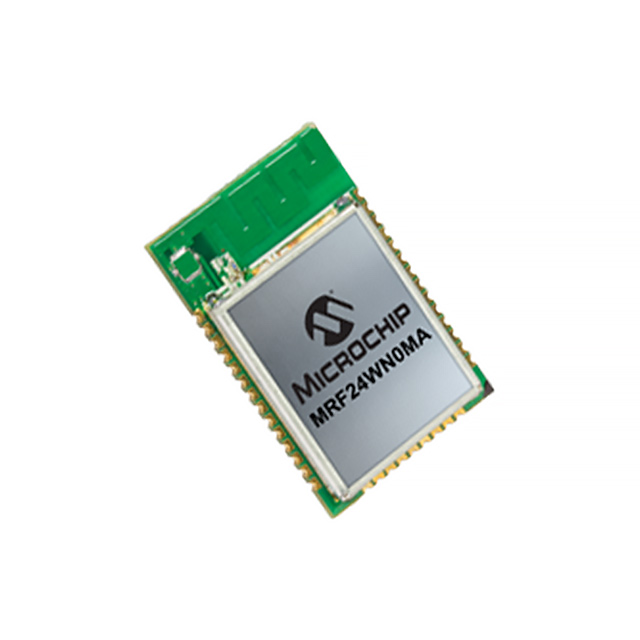

MRF24WN0MA-I/RM100

Description：RF TXRX MOD WIFI TH SMD
Series：-
Mfr：Microchip Technology
Package：Tray

SKU:60a767d98a31 Category: RF Transceiver Modules and Modems Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MRF24WN0MA-I/RM100 is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is RF TXRX MOD WIFI TH SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for MRF24WN0MA-I/RM100

Description：RF TXRX MOD WIFI TH SMD
Series：-
Mfr：Microchip Technology
Package：Tray
RF Family/Standard：WiFi
Protocol：802.11b/g/n
Modulation：BPSK, CCK, DSSS, QAM, QPSK
Frequency：2.4GHz
Data Rate：54Mbps
Power - Output：20.7dBm
Sensitivity：-94dBm
Serial Interfaces：SPI
Antenna Type：Integrated, Trace
Utilized IC / Part：-
Memory Size：-
Voltage - Supply：3.15V ~ 3.45V
Current - Receiving：61mA ~ 73mA
Current - Transmitting：196mA ~ 248mA
Mounting Type：Surface Mount
Operating Temperature：-40°C ~ 85°C
Package / Case：37-SMD Module

RF Transceiver Modules And Modems datasheet and documents for MRF24WN0MA-I/RM100

MRF24WN0MA-I/RM100

RF Transceiver Modules And Modems Overview

The MRF24WN0MA-I/RM100 is a Microchip Technology WiFi module supporting IEEE 802.11b/g/n protocols. It operates within a frequency range of 2.412GHz to 2.472GHz with -94dBm sensitivity. The module requires a supply voltage of 3.15V to 3.45V and utilizes an SPI interface. Physical dimensions are 17.8mm x 26.7mm x 2.2mm. Operating temperature ranges from -40°C to +85°C.

RF Transceiver Modules And Modems Feature Summary

Supports AES128 security standard
Integrated chip antenna design
Industrial temperature rating

RF Transceiver Modules And Modems Applications

IoT sensor networks
Industrial automation systems
Smart home devices

RF Transceiver Modules And Modems Procurement Notes

This component is officially discontinued and no longer manufactured by Microchip Technology. Verification of current availability through authorized distributors is required, as stock levels may be limited or non-existent. Procurement should focus on identifying valid replacement parts that meet the same technical specifications and form factor requirements for ongoing production needs.

RF Transceiver Modules And Modems Selection Notes

Select this module only if legacy compatibility with the MRF24WN0 series is strictly required. Ensure the host system supports the specific SPI interface timing and the 3.15V to 3.45V power supply constraints. Verify that the physical footprint of 17.8mm x 26.7mm fits the PCB layout. Consider the industrial temperature range suitability for the intended deployment environment before finalizing the design.

RF Transceiver Modules And Modems Part Context

The MRF24WN0MA-I/RM100 belongs to the MRF24WN0 family of wireless modules from Microchip Technology. This series provides integrated WiFi connectivity solutions designed for embedded applications. The module combines the radio transceiver and baseband processing into a single compact package, simplifying integration for developers requiring reliable 2.4GHz wireless communication capabilities in constrained spaces.
