MS24SF1-8Y40AIR

RF Transceiver Modules And Modems Overview

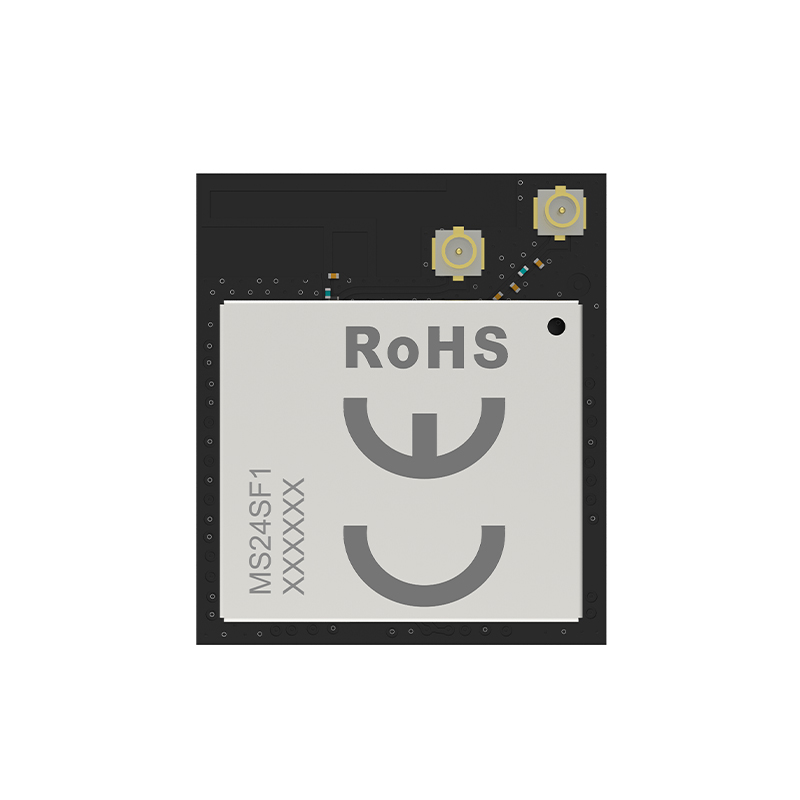

The MS24SF1-8Y40AIR is a multi-interface LoRaWAN module integrating the nRF52840 and SX1262 chips. It supports Bluetooth v5.0 and LoRa modulation modes including FSK, GFSK, and LoRa. The module operates within an input voltage range of 1.7V to 5.5V. Key electrical parameters include a receiving current of 4.6mA and a transmitting current of 4.9mA. It features a PCB antenna type and utilizes GPIO serial interfaces. The device is designed for low-power applications requiring both long-range and short-range data transmission capabilities.

RF Transceiver Modules And Modems Feature Summary

• Integrates nRF52840 and SX1262 silicon for combined BLE and LoRa connectivity
• Supports multiple modulation modes including FSK, GFSK, and LoRa
• Designed as a low-power, compact solution for wireless data transmission

RF Transceiver Modules And Modems Applications

• Long-distance data collection systems
• Low-power transmission control applications
• LoRaWAN network endpoints requiring BLE proximity features

RF Transceiver Modules And Modems Procurement Notes

Verify the specific frequency band configuration (868MHz or 915MHz) against regional regulatory requirements before procurement. Confirm that the U.FL connector interface matches the target PCB layout. Ensure the operating temperature range of -40°C to 85°C aligns with the intended environmental conditions. Cross-reference the datasheet version to confirm firmware compatibility and pinout definitions.

RF Transceiver Modules And Modems Selection Notes

Select this module when both long-range LoRa communication and short-range Bluetooth Low Energy are required in a single compact form factor. The integration of nRF52840 provides significant processing power compared to standard transceivers. Consider the GPIO interface requirements for system integration. Evaluate the power consumption profiles during receive and transmit states against battery life expectations.

RF Transceiver Modules And Modems Part Context

This component belongs to Minewsemi's series of LoRa modules combining BLE and LoRaWAN technologies. It utilizes the widely adopted nRF52840 SoC paired with the Semtech SX1262 RF transceiver. This combination allows for versatile deployment in IoT scenarios demanding both extended range and local connectivity without requiring separate hardware components.

RF Transceiver Modules And Modems Replacement Considerations

The MS24SF1 is functionally similar to the MS24SF1-8Y33AIR variant which may differ in frequency band or certification. Verify pin-to-pin compatibility if substituting other Minewsemi modules. No direct cross-manufacturer substitutes are confirmed in public documentation due to the specific chip integration.
