MS50SFB-2Y32AIR

RF Transceiver Modules And Modems Overview

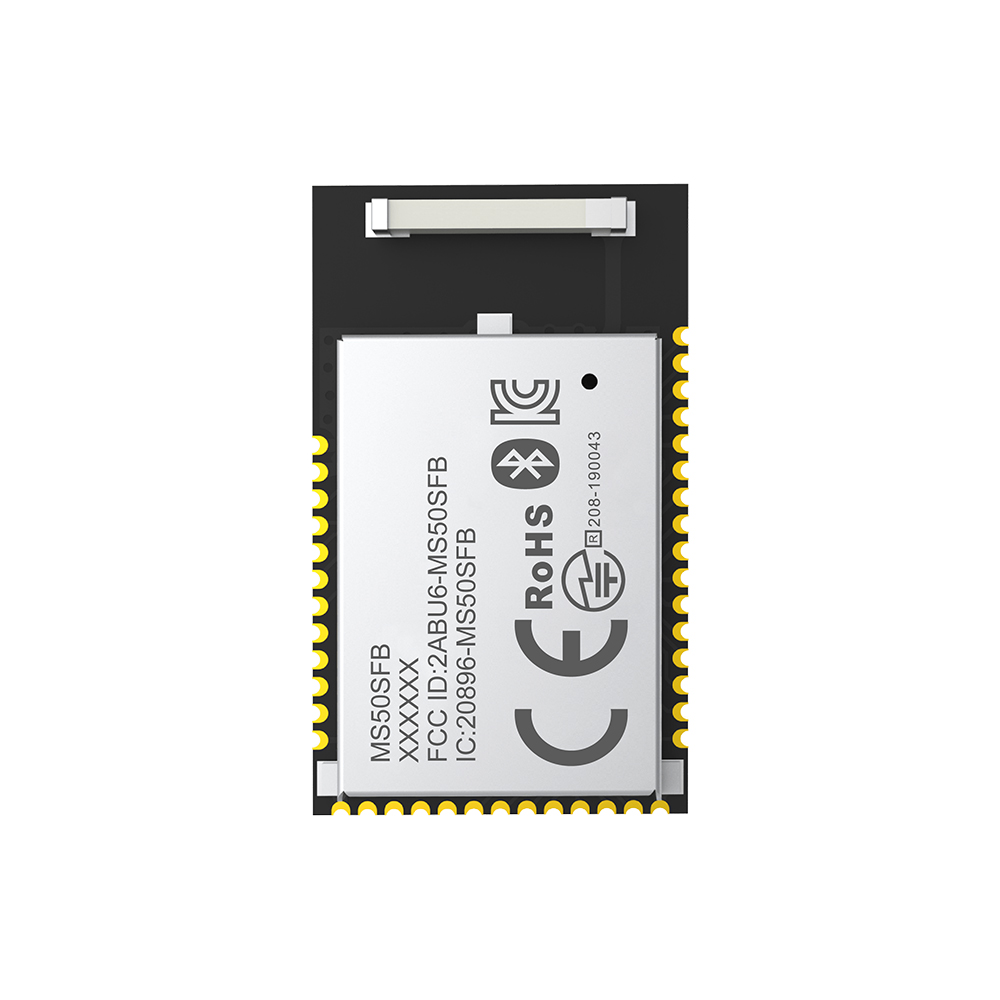

The Minewsemi MS50SFB-2Y32AIR is a Bluetooth v5.4 RF transceiver module based on the nRF52832 chipset. It features an integrated ceramic patch antenna and surface-mount packaging. The module operates within a frequency range of 2402 to 2480 MHz, with a maximum output power between -20 and +4 dBm. Key electrical parameters include a sensitivity of -96 dBm, reception current of 5.4 mA, and transmission current of 5.3 mA. It utilizes 512 kB of flash memory and 64 kB of RAM, supporting a supply voltage of 1.7 V to 3.6 V.

RF Transceiver Modules And Modems Feature Summary

• Integrates the nRF52832 chipset with ARM Cortex-M4F core for efficient processing.
• Supports Bluetooth v5.4 protocol standards for wireless communication.
• Features an integrated ceramic patch antenna for compact design.

RF Transceiver Modules And Modems Applications

• Smart Sensor networks
• Medical Device connectivity
• Smart Light systems

RF Transceiver Modules And Modems Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct antenna type and package configuration. Confirm that the component meets RoHS compliance and Moisture Sensitivity Level (MSL) 2 requirements for storage and handling. Cross-reference the part number with authorized distributors to validate authenticity and active status before procurement.

RF Transceiver Modules And Modems Selection Notes

Select this module when a compact solution with integrated ceramic antenna is required for Bluetooth v5.4 applications. Ensure the host system supports the 1.7 V to 3.6 V operating voltage range. Consider the -40°C to 85°C operating temperature range for environmental suitability. Verify GPIO availability matches interface requirements.

RF Transceiver Modules And Modems Part Context

The MS50SFB-2Y32AIR belongs to the Minewsemi MS50SFB series of RF transceiver modules. This series leverages the Nordic nRF52832 SoC, providing a balance of performance and power efficiency. The module is designed for surface-mount assembly, facilitating integration into space-constrained electronic devices requiring reliable short-range wireless communication capabilities.

RF Transceiver Modules And Modems Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative modules from the same manufacturer or chipset family only if official cross-reference data is verified through Minewsemi technical resources.
