MS560702BA03-00

Pressure Sensors Transducers Overview

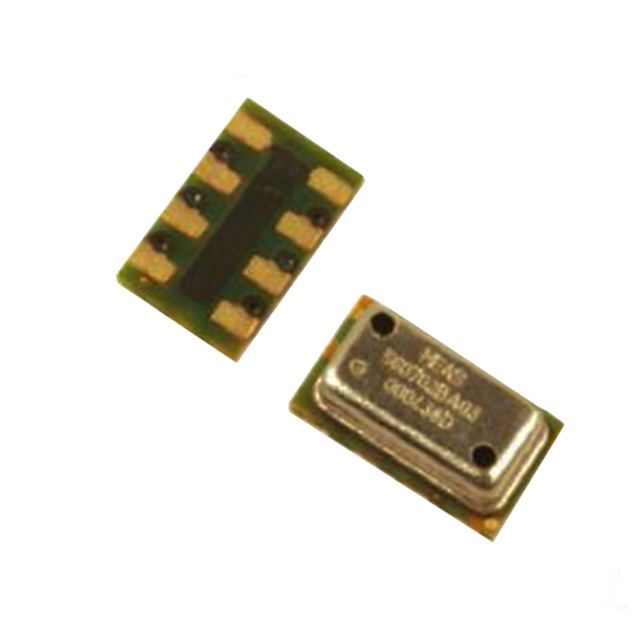

The MS560702BA03-00 is a board-mount absolute barometric pressure sensor from the MS5607-02BA series by TE Connectivity. It integrates a high-resolution 24-bit delta-sigma ADC with an internal factory-calibrated pressure sensor, eliminating the need for external components. The device operates on a supply voltage ranging from 1.8 V to 3.6 V and features I2C and SPI digital interfaces. Packaged in a compact QFN-8 (3x5x1 mm) SMD/SMT footprint, it supports operation between -40°C and +85°C with a working pressure range of 10 mbar to 1.2 bar.

Pressure Sensors Transducers Feature Summary

• Integrates a 24-bit delta-sigma ADC and internal factory calibration coefficients for precise digital output without external components.
• Supports both I2C and SPI digital interfaces for flexible microcontroller connectivity.
• Features ultra-low power consumption and high stability with minimal hysteresis.

Pressure Sensors Transducers Applications

• Altimeters
• Variometers
• Mobile altimeter/barometer systems
• Data loggers

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels due to potential availability constraints. Confirm RoHS compliance status via official documentation prior to integration. Ensure proper handling procedures are followed for the sensitive QFN-8 package during assembly. Cross-reference datasheet revisions to guarantee compatibility with existing design specifications.

Pressure Sensors Transducers Selection Notes

Select this component for applications requiring high-precision atmospheric pressure measurement in space-constrained environments. The integrated calibration reduces system complexity compared to analog alternatives. Consider the specific interface requirements (I2C vs SPI) when designing the host microcontroller circuitry. Evaluate power budget constraints against the specified operating current.

Pressure Sensors Transducers Part Context

This part belongs to the MS5607-02BA family of Alt-Baro sensors, designed specifically for mobile devices and portable electronics. It shares architectural similarities with other models in the series but differs in packaging and specific electrical characteristics. The product line emphasizes miniaturization and low power consumption for consumer electronics.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for equivalent recommendations if this discontinued variant is required.
