MS580602BA52-51

Pressure Sensors Transducers Overview

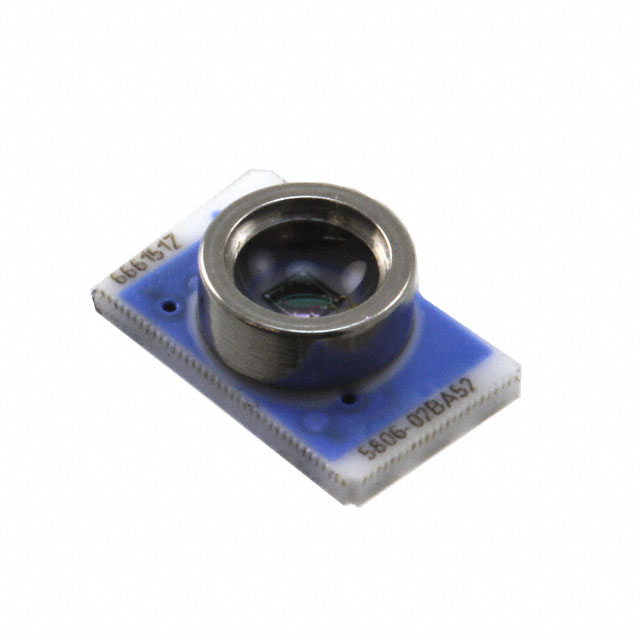

The MS580602BA52-51 is a board-mount absolute pressure sensor from the MS5806 series by TE Connectivity Measurement Specialties. It features an I2C digital output with 24-bit resolution, providing high precision for low-pressure applications. The device operates within a supply voltage range of 1.8V to 3.6V and supports an operating pressure range of 4.35 PSI to 17.4 PSI (30 kPa to 120 kPa). Accuracy is specified at ±0.058 PSI (±0.4 kPa). The component is packaged in Tape & Reel format for automated surface-mount assembly.

Pressure Sensors Transducers Feature Summary

• Integrates a piezoresistive sensing element with a sigma-delta ADC for direct digital conversion
• Provides calibrated absolute pressure measurements via standard I2C interface
• Features on-chip temperature compensation for enhanced accuracy across operating conditions

Pressure Sensors Transducers Applications

• Medical gas flow measurement systems
• Environmental monitoring devices
• Low-altitude altitude sensing in drones

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix -51 against the manufacturer's official datasheet to confirm packaging type and calibration status. Ensure compatibility with the target system's I2C voltage levels and address configuration. Request the latest revision data sheet to validate electrical characteristics and mechanical dimensions prior to final integration.

Pressure Sensors Transducers Selection Notes

Select this model when precise absolute pressure measurement is required in the 30 kPa to 120 kPa range. The 24-bit resolution and integrated temperature compensation make it suitable for applications demanding high stability without external signal conditioning. Consider the I2C interface requirements and supply voltage constraints during circuit design.

Pressure Sensors Transducers Part Context

This part belongs to the MS5806 family of digital barometric pressure sensors. These sensors are designed for compact, low-power applications requiring accurate pressure data. The series typically integrates the pressure sensor die with signal processing electronics in a small footprint, facilitating easy implementation in portable and space-constrained electronic devices.
