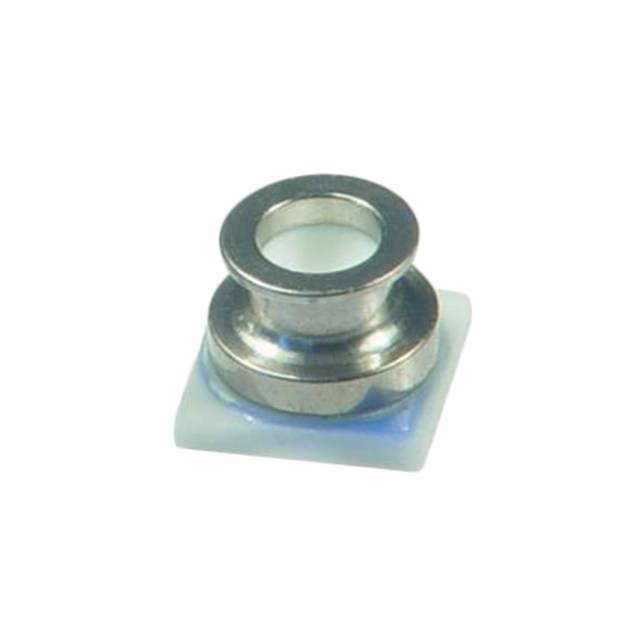

MS5837-02BA21

$8.42

Description：SENSOR 17.4PSIA 24BIT
Series：MS5837
Mfr：TE Connectivity Measurement Specialties
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bcb37ab9f949 Category: Pressure Sensors, Transducers Brand: TE Connectivity Measurement Specialties

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MS5837-02BA21 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists TE Connectivity Measurement Specialties. Its product description is SENSOR 17.4PSIA 24BIT. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for MS5837-02BA21

Description：SENSOR 17.4PSIA 24BIT
Series：MS5837
Mfr：TE Connectivity Measurement Specialties
Package：Tape & Reel (TR),Cut Tape (CT)
Applications：Board Mount
Pressure Type：Absolute
Operating Pressure：4.35PSI ~ 17.4PSI (30kPa ~ 120kPa)
Output Type：I2C
Output：24 b
Accuracy：±0.007PSI (±0.05kPa)
Voltage - Supply：1.5V ~ 3.6V
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：SMD (SMT) Tab
Maximum Pressure：145.04PSI (1000kPa)
Operating Temperature：-20°C ~ 85°C
Mounting Type：Surface Mount
Package / Case：4-SMD Module
Supplier Device Package：-
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for MS5837-02BA21

MS5837-02BA21

Pressure Sensors Transducers Overview

The MS5837-02BA21 is an absolute pressure sensor from the MS5837 series, manufactured by TE Connectivity Measurement Specialties. It features a working pressure range of 4.35 PSI to 17.4 PSI (30 kPa to 120 kPa) with a maximum pressure rating of 145.04 PSI (1000 kPa). The device provides a 24-bit digital output via an I2C interface and operates on a supply voltage between 1.5 V and 3.6 V. It includes temperature compensation and is housed in a 4-SMD module package for surface mount installation.

Pressure Sensors Transducers Feature Summary

Integrated temperature compensation for accurate readings across operating conditions
High-resolution 24-bit digital output capability
Standard I2C communication interface for system integration

Pressure Sensors Transducers Applications

Barometric pressure measurement
Altitude sensing
Weather station monitoring

Pressure Sensors Transducers Procurement Notes

Verify current availability as previous variants may be obsolete. Confirm that the specific suffix denotes the correct packaging or revision required for your design. Check manufacturer notices for any product change notifications affecting pinout or electrical characteristics before finalizing procurement.

Pressure Sensors Transducers Selection Notes

Select this component when a low-power, high-accuracy absolute pressure sensor is needed for board-mounted applications. Ensure the I2C interface compatibility with the host microcontroller. Verify that the 1.5V to 3.6V supply range matches the system power architecture and that the 4-SMD package fits the PCB footprint constraints.

Pressure Sensors Transducers Part Context

This part belongs to the MS5837 family of barometric sensors designed for portable electronic devices. It integrates a piezoresistive pressure sensor element with a sigma-delta ADC and I2C interface. The series is optimized for applications requiring precise atmospheric pressure data in compact form factors.
