MS583730BA01-50

Pressure Sensors Transducers Overview

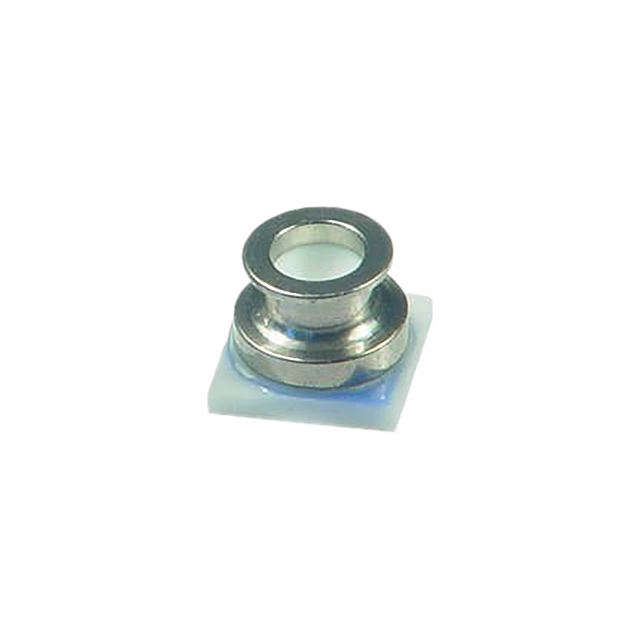

The MS583730BA01-50 is a gel-filled, surface-mount absolute pressure sensor module designed for high-resolution depth and altitude measurement. It features an I2C digital interface and a 24-bit Sigma-Delta ADC. The device operates within a pressure range of 0 to 30 bar (0 to 300 meters water depth) with a supply voltage of 1.5V to 3.6V. Key specifications include a resolution of 0.001 mbar, accuracy of ±50 mbar, and an operating temperature range of -20°C to +85°C.

Pressure Sensors Transducers Feature Summary

• Gel-filled construction provides waterproofing for direct contact with liquids.
• Integrated 24-bit Sigma-Delta ADC ensures high-resolution digital output.
• I2C bus interface supports standard communication protocols for system integration.

Pressure Sensors Transducers Applications

• Water depth measurement systems
• Altimeter applications
• Barometer implementations

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix '50' against the manufacturer's current datasheet to confirm package type and tape/reel specifications. Ensure the selected variant matches the required operating pressure range and interface voltage levels for the target application design.

Pressure Sensors Transducers Selection Notes

Select this component when high-resolution depth sensing in liquid environments is required. The gel-filled design eliminates the need for external sealing. Confirm that the I2C address configuration and voltage levels are compatible with the host microcontroller's capabilities.

Pressure Sensors Transducers Part Context

This part belongs to the MS5837 series of MEMS pressure sensors from TE Connectivity Measurement Specialties. It utilizes advanced signal conditioning and calibration data stored on-chip to provide accurate temperature-compensated pressure readings without external components.

Pressure Sensors Transducers Replacement Considerations

MS5837-30BA01-50
